ArmaMeshSPECTATOR

Description

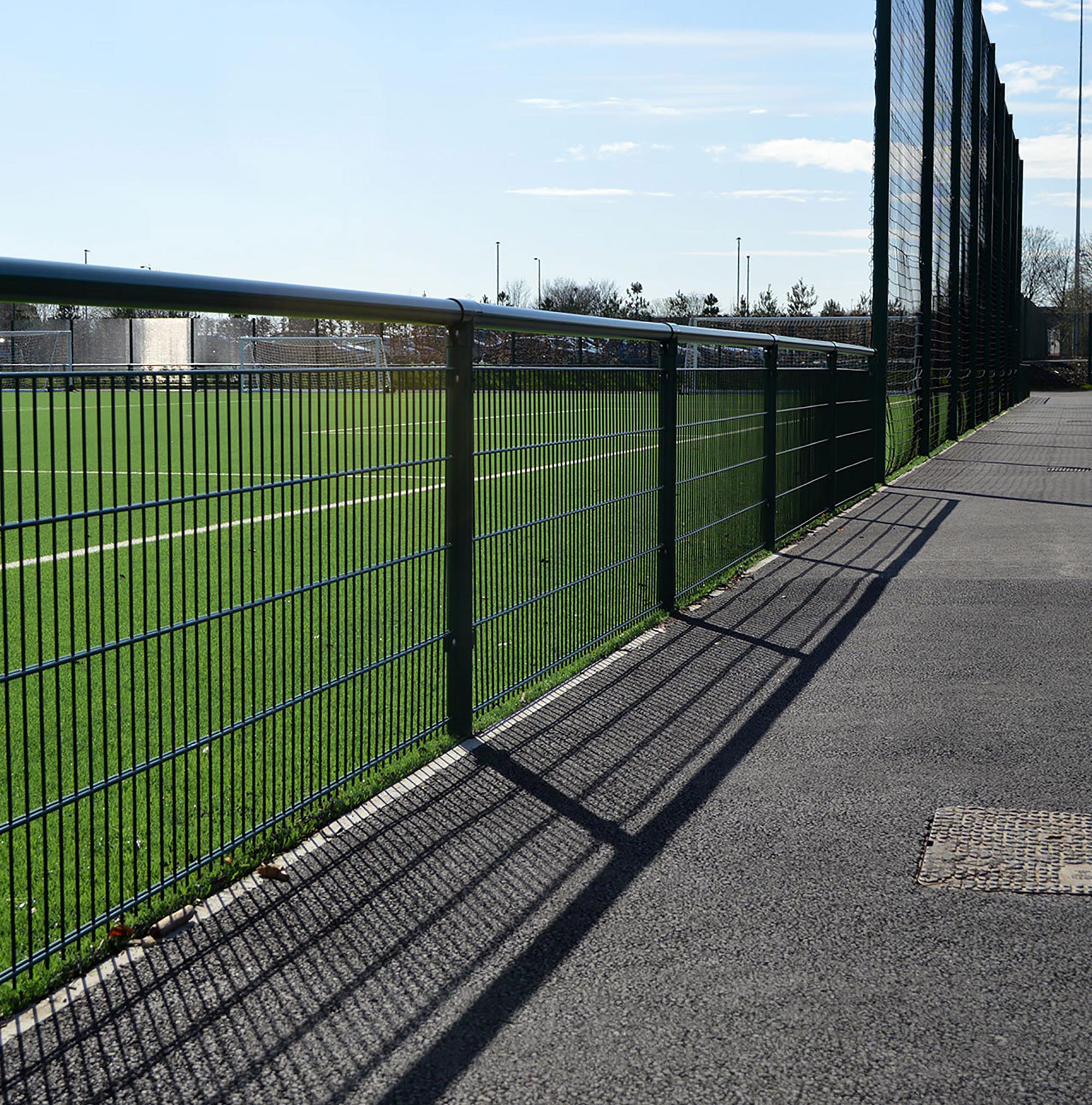

When hosting any spectator sport, you should always have an appropriate barrier between the crowd and the field of play. Our incredibly popular ArmaMeshSPECTATOR spectator rail fencing creates that safe perimeter around the action, while giving spectators a strong and comfortable rail to lean on.

Specification

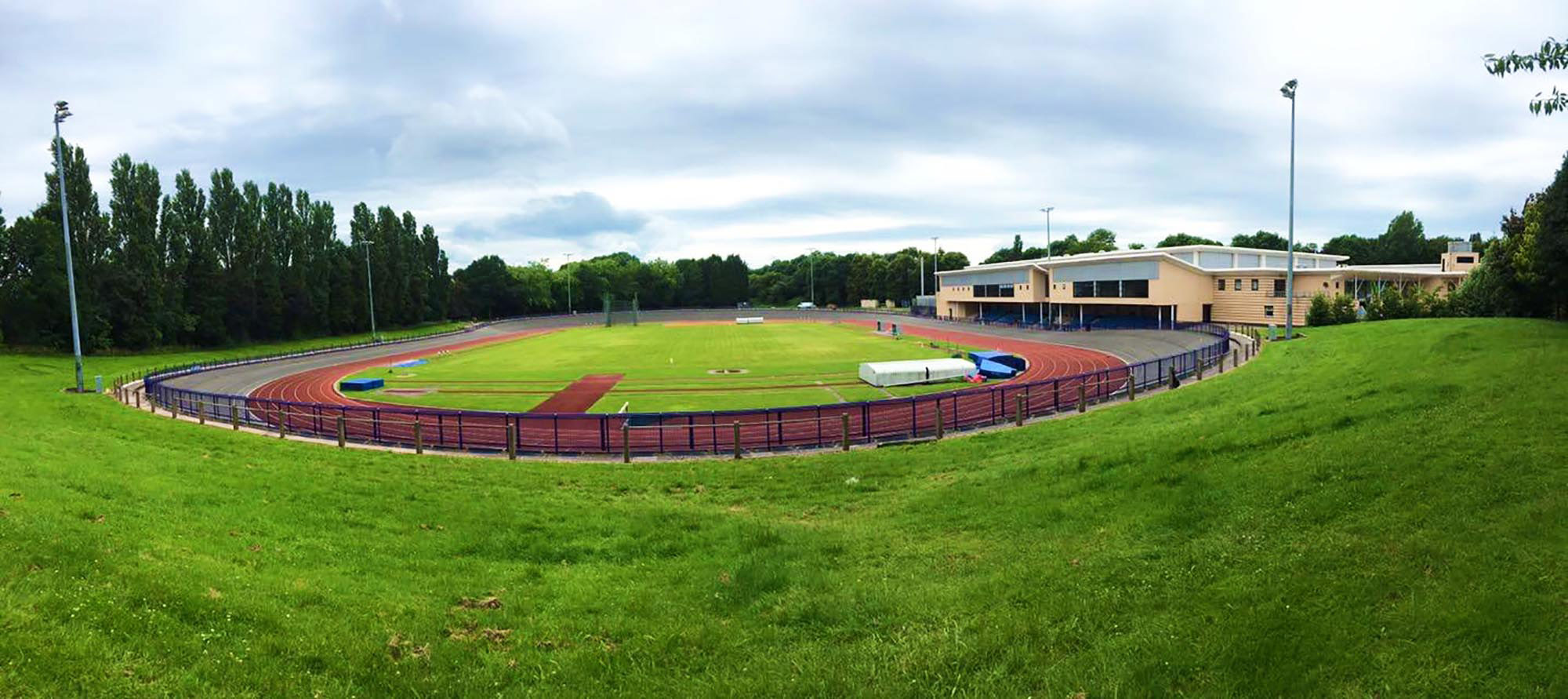

Versatile and attractive enough to be installed in school playgrounds and around running tracks, ArmaMeshSPECTATOR is incredibly simple to install thanks to its quick and easy clamp system. And if hockey or other field sports are being played, there’s even an option to add a kickboard to prevent ball damage.

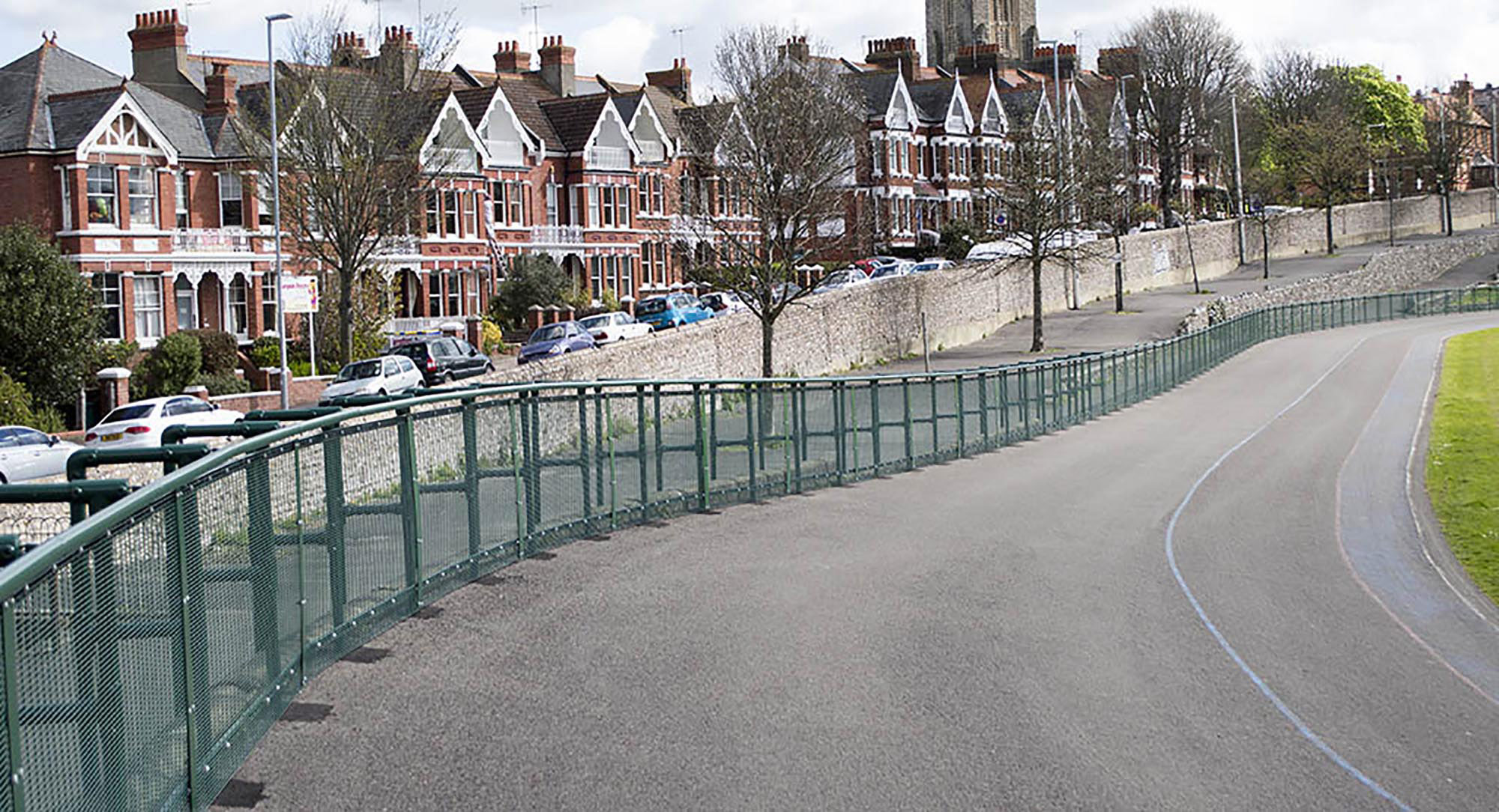

Our ArmaMeshSPECTATOR fencing system is also available in a bespoke Velodrome Fencing solution that has been specified by British Cycling and is featured on a wealth of velodromes across the United Kingdom.

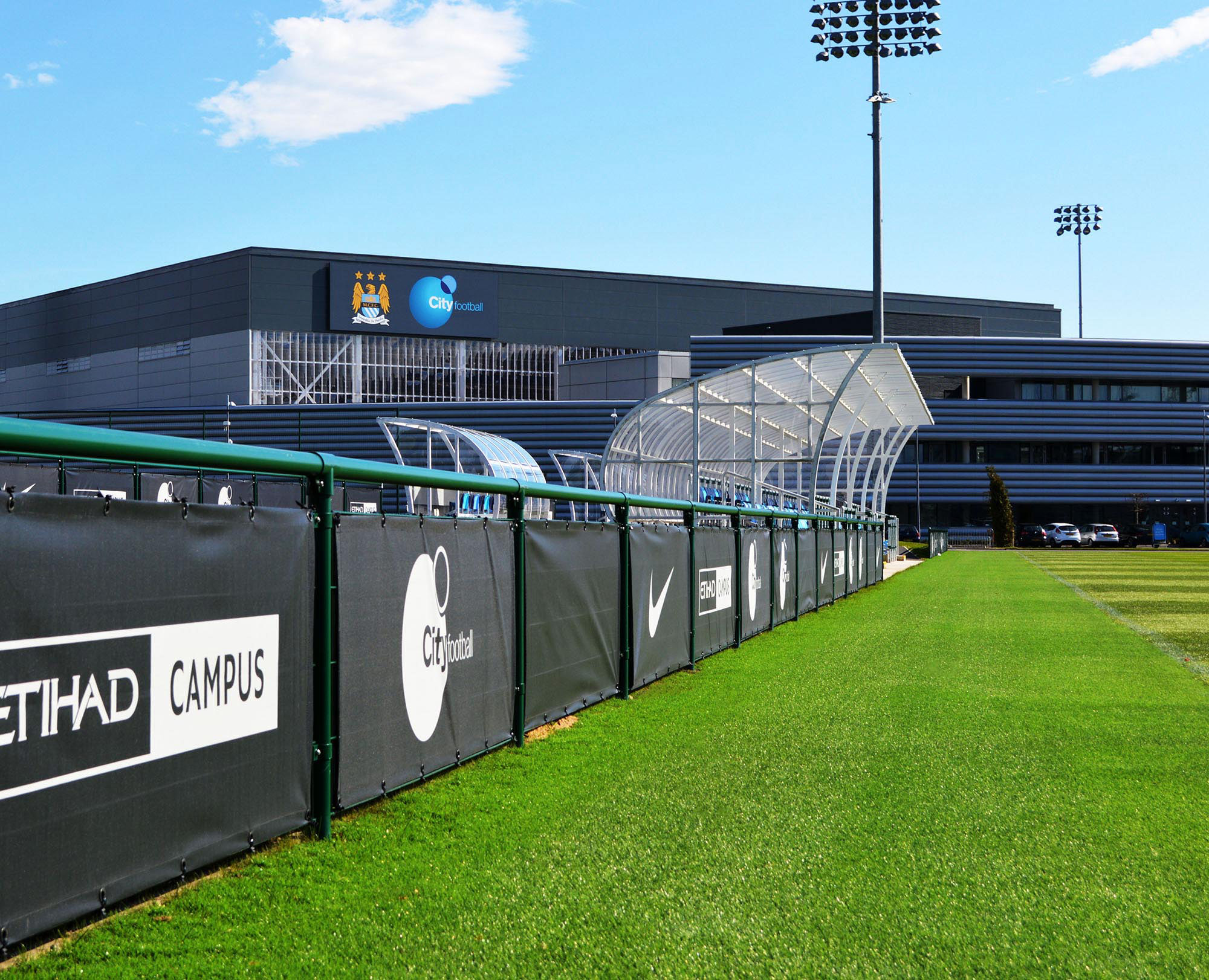

You can choose from a range of panels, from flat and profiled to our double wire ArmaMeshTWIN system with RHS steel posts for added strength and security. We even offer solid panels so that you can feature corporate advertising boards and generate revenue for your school or sports club.

Technical

Height: 990mm/1190mm/1390mm
Nominal Height: 1.0m/1.2m/1.4m * delete as required (other heights available on request, please contact Gramm Barrier Systems for further information)
Mesh & Wire: ArmaMeshTWIN Profiled Rigid Mesh Panel 200 x 50mm mesh; 5mm wires with 2 profiles, galvanised and polyester powder-coated to 60 microns.
Posts: Posts: 60 x 40 mm RHS, galvanised after manufacture and polyester powder-coated to match fencing.

60.3 mm CHS, galvanised after manufacture and polyester powder-coated to match fencing.

Top Rail: 60 x 40 mm RHS, galvanised after manufacture and polyester powder-coated to match fencing.

60.3 mm CHS, galvanised after manufacture and polyester powder-coated to match fencing

Fixings: ArmaMeshSPECTATOR clamps and fixings as supplied by manufacturer
Set Posts: Set posts in holes 300 mm diameter x 800** mm deep, filled not less than half the depth with concrete, as clause 620.
Maximum Posts Centres: 2495mm
Bottom of Fencing to Be: approx. 50 mm above final ground level.
Other Requirements: PPC Colour Green RAL 6005. A full range of RAL Colours are available from Gramm Barrier Systems including marine grade and metallics.

Foundation types

Gramms ArmaMeshSPECTATOR mesh fencing system can be either set into concrete foundations or bolted down to individual concrete pads or a continuous concrete strip/pad.

Fixing methods

a) Galvanised steel or PPC posts with baseplates can be fixed to concrete surfaces using chemfix resin anchors or cast in cradles.
b) Steel posts can be set into augered or bucket dug concrete foundations.

Downloads

ArmaMeshSPECTATOR
