Timber Reflective Noise Barrier - Acoustic Fencing

Description

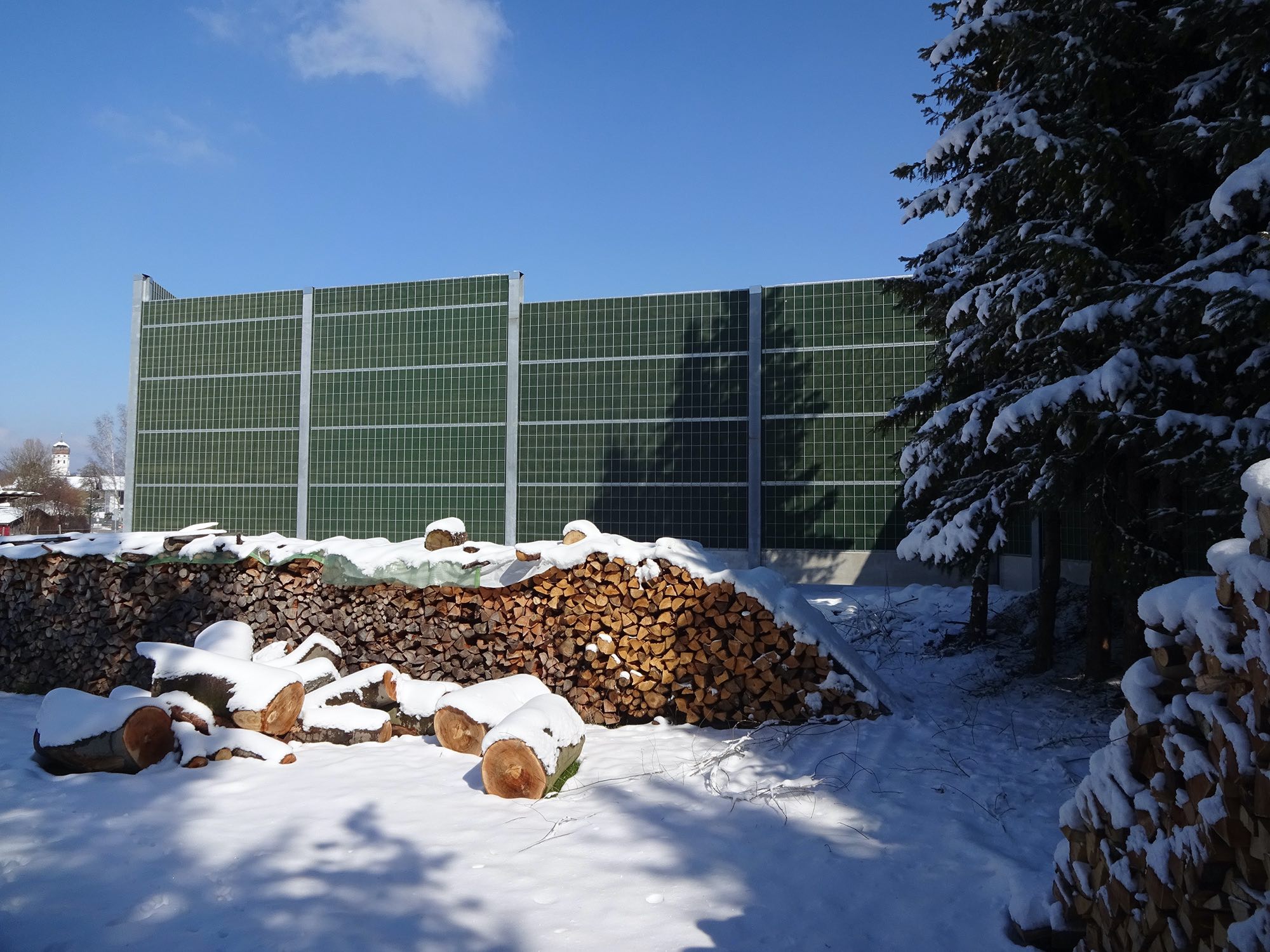

Gramm Barrier Systems GREENSoundBlok® system has been uniquely designed to help the barrier blend in with its surroundings.

We have designed the barrier to manufactured offsite in component parts which allows for an efficient and safe install onsite.

Once the barrier has been installed, fast growing plants such as Ivy can be plated at the base. After a short amount of time the barrier starts to be encased with plant growth, resulting in a cost-effective Living Green Barrier System.

Specification

Each panel is made of corrosion- resistant aluminium sectional frame for increased stability. The panels have a high density rockwool which provides substantial noise reductions. The GREENSounBlok® system is manufactured with a robust interlocking system for easy staking of multiple elements.

The reverse side of the panel facing away from the noise source is also high absorptive creating a double-sided absorptive barrier system. The robust element structure provides a natural appearance if the decision is made not to install plants. Gramm offer a wide range of colours on our GREENSoundBlok® system which allows for individual design.

A unique design feature of the GREENSoundBlok® barrier construction is that individual panels can be removed and replaced. Panels are not bolted, welded, or otherwise permanently fastened to each other or to the support posts (Top security fixing added if required). Should replacement be called for as a result of structural damage, no more than four workmen using ordinary hand tools will be able to do the job.

Technical

  • Class = A3,B3
  • Acoustic Performance = DLʀ 28dB, Dlα 11dB
  • Design Life of barrier = 30 years
  • Design Life of Steel Posts = 60 + Years
  • Barrier Heights = From 0.5m – 10m (Bespoke heights available on request)
  • Bay Widths = From 1.0m – 6.0m
  • Weight = 30.5kg/m2
  • Material = Aluminium, Rockwool, Geotextile
  • Finish = Galvanised (Powder Coated + Coloured Geo available).

Foundation types

Gramms GREENSoundBlok® noise barrier system can be either set into concrete foundations or bolted down to individual concrete pads or a continuous concrete strip/pad.

Fixing methods

a) Galvanised steel or PPC posts with baseplates can be fixed to concrete surfaces using chemfix resin anchors or cast in cradles.
b) Timber or steel posts can be set into augered or bucket dug concrete foundations.

Why Choose Gramm Barrier Systems?

Gramm Barrier Systems are one of the only noise barrier specialist in the country give a 30 year guarantee on all our Acoustic Fencing, Acoustic Barriers & Noise Barriers. We also confirm that the barriers are designed to be maintenance free for the full 30 years.

Some of our noise barrier range is fully CE Marked and compliant for use on Highways England schemes under CPR 2013. Also schemes using Sector Scheme 2C, for the supply and installation of Environmental Barriers

All ours materials and installations are to such a high standard we are the only noise barrier specialists to have all our works backed and insured by the government.

Gramm Barriers Noise Barrier systems give the highest level of sound reduction on the market which is why our product’s are specified on many major road and rail schemes.

Gramm Barrier Systems Ltd are fully committed to the highest level of customer service, professionalism and health & safety for every installation. Utilising quality materials in manufacturing, the highest level of expertise, Gramm aim to maintain a quality product that is secure and reliable.
