Gramm Barrier Systems TILESoundBlok® noise barrier tiles are manufactured from carefully selected specialist aggregates with angular face which are bonded together using our patented method. This allows the system to use a low amount of binder while still retaining a strong bond. The result, a robust material ideal for sound absorption in a variety of applications.

  • High sound absorption
  • Cost effective – labour is reduced
  • Robust – strong enough to be used in tunnels
  • Attractive finish – available in any RAL colour
  • Non-combustible – class O fire safety rating
  • Weather resistant – Can easily withstand the elements

We are also able to make bespoke solutions based on the individual needs of the client/project. This has included designing acoustic treatment for studios, attaching to fire resistant boards for use in tunnels, motorway and rail barriers and designing custom finishes for use in nightclubs.


Because of the strength, durability and manufacturing flexibility of TILESoundBlok®, installation is very flexible. As with any porous sound absorber, we recommend if possible, to have an air gap between the panel and any hard surface as this will greatly improve the absorption, particularly in the lower frequencies.

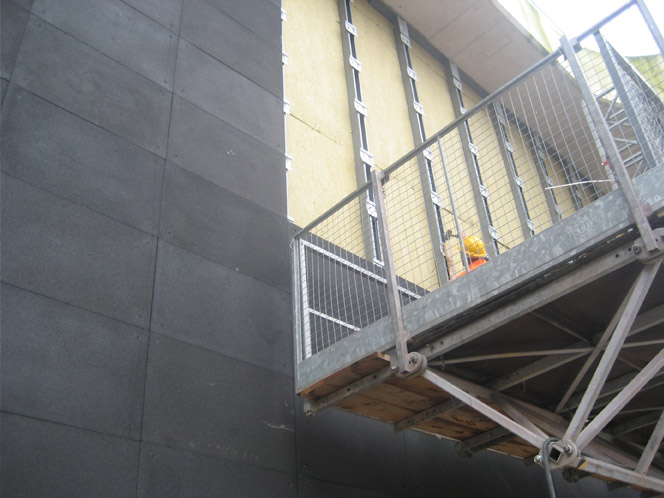

TILESoundBlok® panels can be fixed onto steel or timber rails which our secured to existing walls or columns using various fixing methods. The TILESoundBlok® material can also be encased within our various noise barrier cassettes.

Physical properties

  • Standard size 500mm x 500mm (although other options available)
  • Standard thickness 30mm (available from 10mm through to 50mm)
  • Weight at 30mm 40Kg/m2
  • Compression strength 10.5 x 103 kN/m2
  • Compression module 3.4 x 106 kN/m2
  • K Value 424 x 10-3 W/m2/0C

Fire safety

Quietstone Heavy meets the requirements of class 1 of BS476: Part 6:1989 and class 0 of BS476: Part 7: 1997. Class 0 being the highest fire standard required by the building regulations.


  • Class = A3
  • Acoustic Performance = Dlα 8dB
  • Design Life of barrier = 30+ years
  • Design Life of fixings = 60 + Years
  • Length & height = From 0.2m – 0.8m (Bespoke sizes available on request)
  • Thickness = From 25mm – 85mm
  • Weight = 30.0kg/m2
  • Material = Flint and Recycled Galss
  • Finish = Standard Stone Colour (Additional colours available on request)

Why Choose Gramm Barrier Systems?

Gramm Barrier Systems are one of the only noise barrier specialist in the country give a 30 year guarantee on all our Acoustic Fencing, Acoustic Barriers & Noise Barriers. We also confirm that the barriers are designed to be maintenance free for the full 30 years.

Some of our noise barrier range is fully CE Marked and compliant for use on Highways England schemes under CPR 2013. Also schemes using Sector Scheme 2C, for the supply and installation of Environmental Barriers

All ours materials and installations are to such a high standard we are the only noise barrier specialists to have all our works backed and insured by the government.

Gramm Barriers Noise Barrier systems give the highest level of sound reduction on the market which is why our product’s are specified on many major road and rail schemes.

Gramm Barrier Systems Ltd are fully committed to the highest level of customer service, professionalism and health & safety for every installation. Utilising quality materials in manufacturing, the highest level of expertise, Gramm aim to maintain a quality product that is secure and reliable.
