CLADSoundBlok
Description
Gramm Barriers CLADSoundBlok® panels are made from up-cycled polymer blends called PC-ABS (Polycarbonate-Acrylonitrile-Butadiene-Styrene)

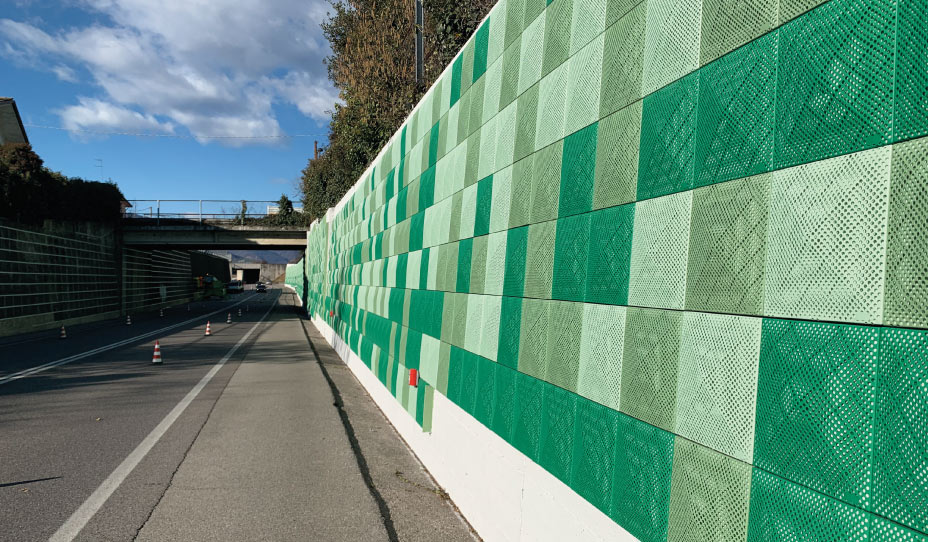

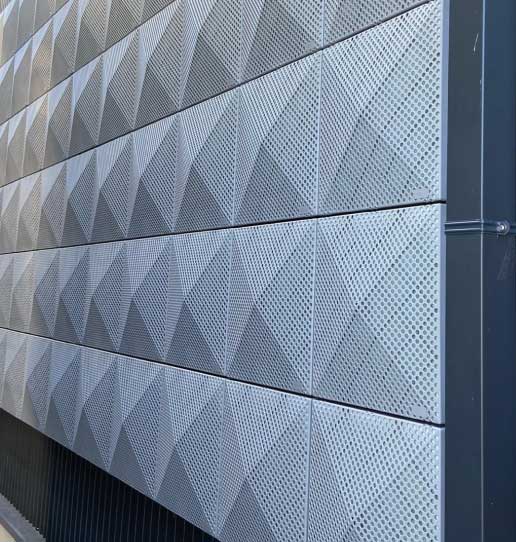

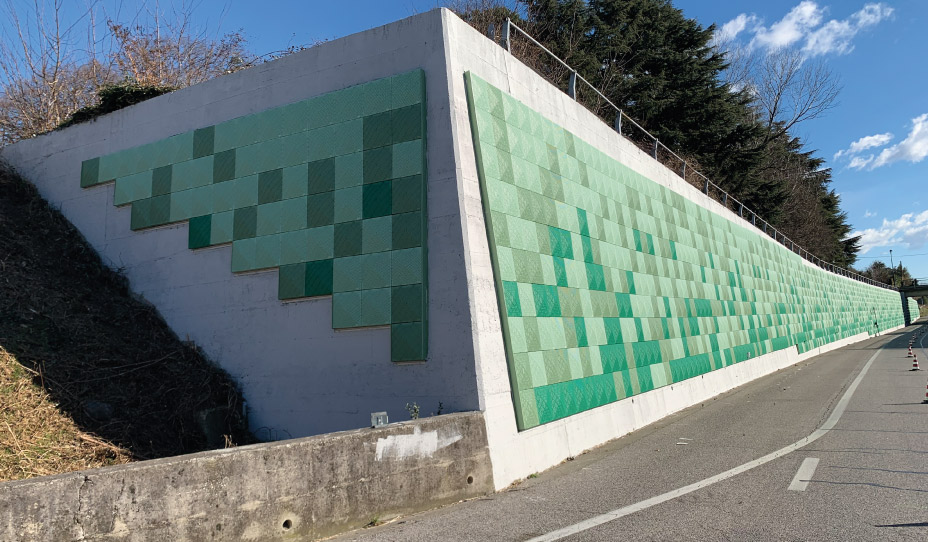

The innovative and surprisingly strong pyramidal shape (500mm x 500mm) allows contractors to create an aesthetically pleasing sound-absorber on almost any wall or ceiling.
Specification
The panel is low-carbon with a great UV resistance and colorful design with phenomenal sound absorbing properties.
The sound absorbing interior of the CLADSoundBlok panel has 3 varieties based on upcycled polyester wool coming from recycled plastic bottles (PET). It is therefore very sustainable, hydrophobic, 100% corrosion proof and achieving without any effort an A5 noise reduction rate.
The front of the panel, directed at the noise source, is perforated for 35%, allowing an effective noise absorption. The CLADSoundBlok panels come with anodized aluminum profiles which facilitate an easy installation process on almost any structure.
Technical
- Absorption levels: Dla 12-19 dB, DLRI 9-11dB
- Height: without limit (Bespoke Heights available on request)
- Lengths: without limit (Bespoke Lengths available on request)
- Material shell: PC-ABS (upcycled plastics)
- Material wool: PET (upcycled plastics)
- UV-resistant
- Mechanical strength: 15kN/m2 (2mx2m)
- Weight: 3 kg/panel, 12kg/m2 ,
Fixing methods
a) Fixing is very simple and rapid to aluminium profiles fitted to existing concrete wall or structure
