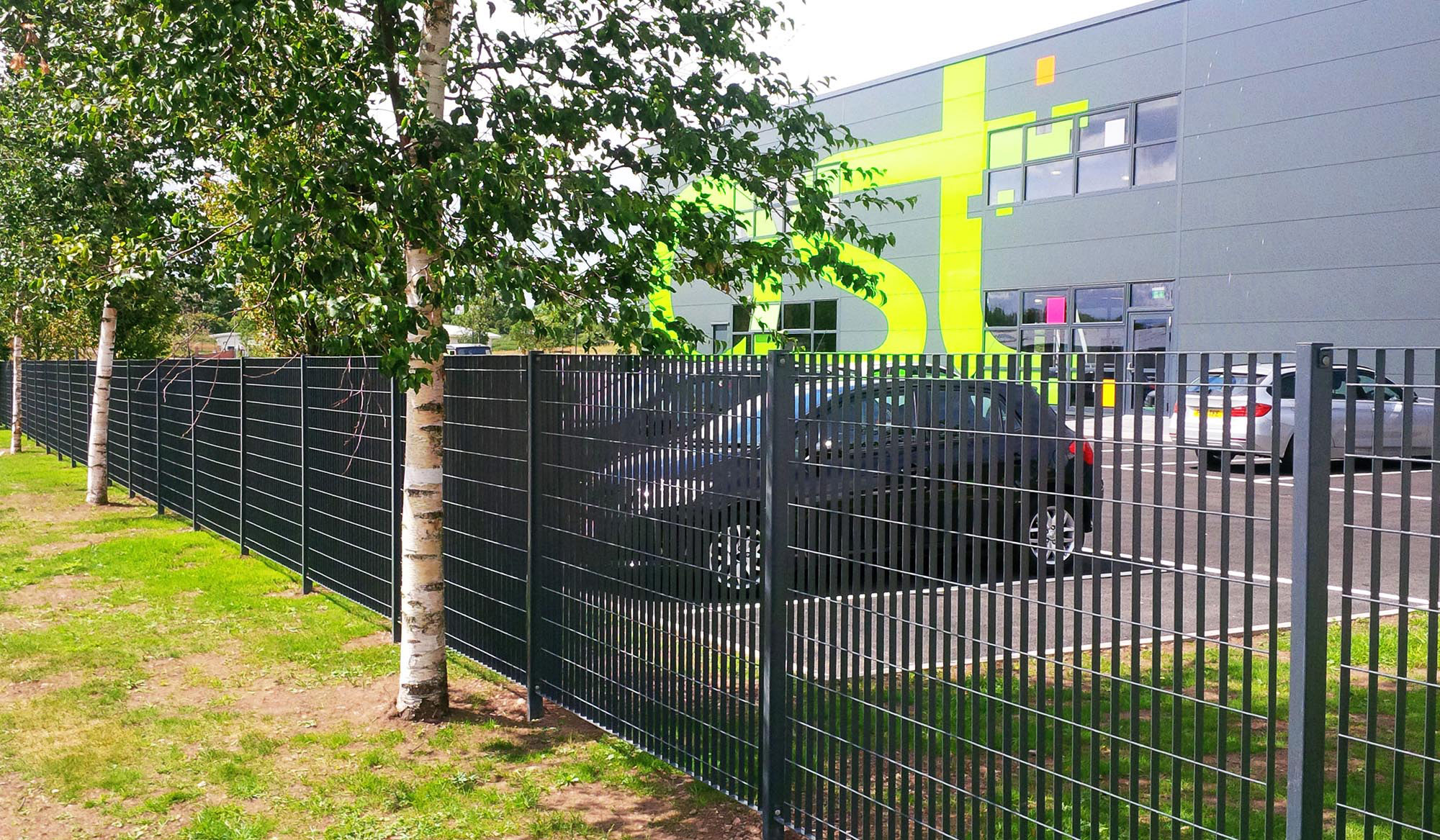

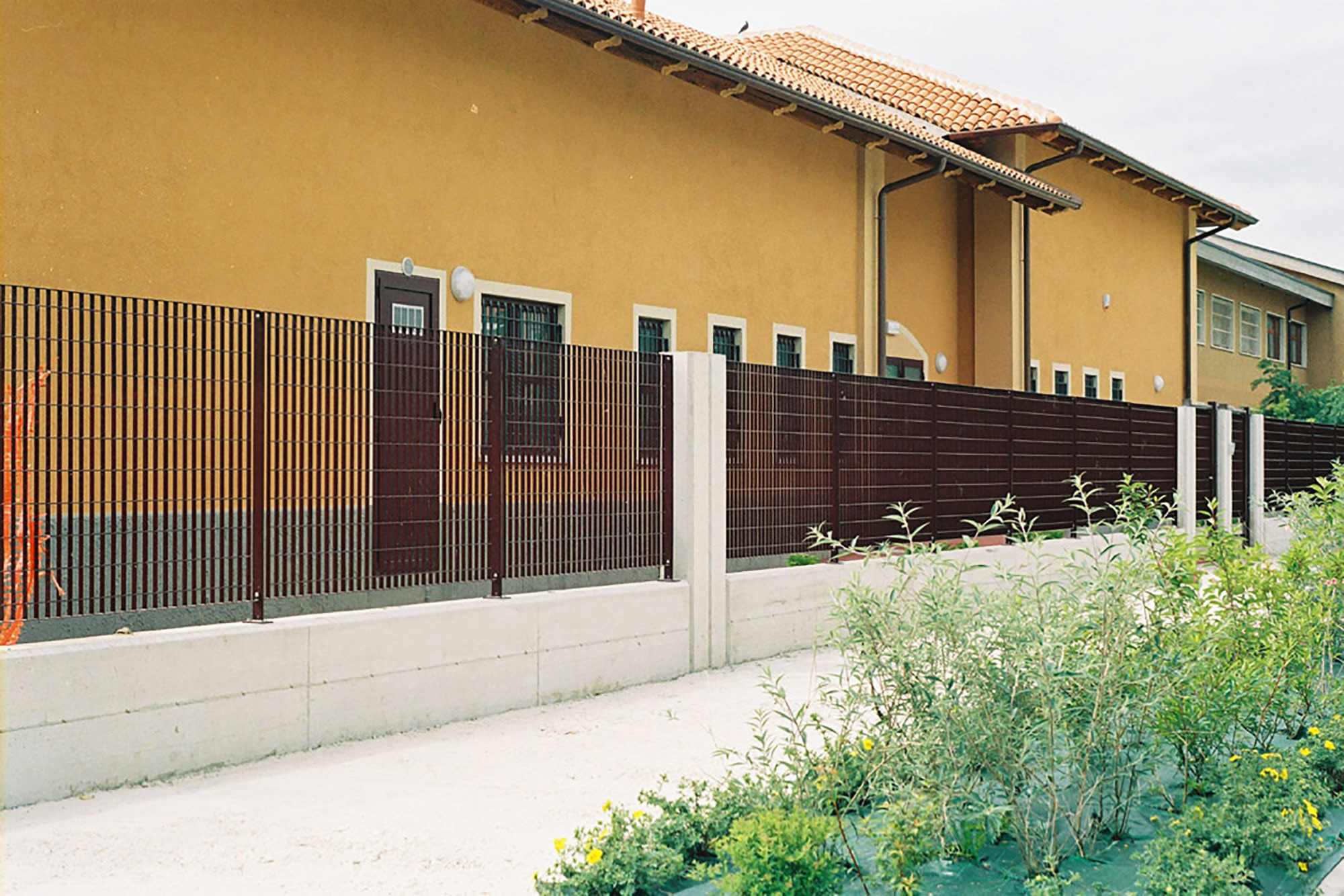

Keeping up with the modernity of the many new build structures in urban areas can be challenging. However, with a high-quality railing fence systems like ArmaMeshGRIL rigid fencing, you can have a professional, contemporary boundary to your premises regardless of the age or style of your buildings.


ArmaMeshGRIL is the most versatile railing fence product within our rigid fencing range, offering a modern feel together with a host of security features that makes it ideal for: hospitals, hi-tech commercial buildings, utility facilities, and modern industrial sites.

The hard wearing and heavy-duty condensed mesh panels are difficult to cut through, and being hot dipped galvanised and polyester powder coated; including marine finish, it will stand up to the harshest environments.

The flexibility of ArmaMeshGRIL means that it will slot in perfectly around any residential or commercial premises, and with a range of RAL colours to choose from, it’s highly customisable.


Height: 930mm/1194mm/1326mm/1458mm/1722mm/1986mm/2118mm/2514mm (fencing can be made up of a combination of the above panels)
Nominal Height: 1.0m/1.2m/1.4m/1.5m/1.8m/2.0m/2.2m/2.6m (fencing can be made up of a combination of the above panels)
Mesh & Wire: Electrofused steel S235JR made up from 25 x 2mm flat bar at 62mm centres vertically and 4.5mm wire at 132mm centres horizontally. Top and Bottom constructed from 25 x 4mm flat bar. Galvanised and polyester powder-coated to a minimum of 60 microns.
Posts: RHS or SHS depending upon application (please contact Gramm Barrier Systems for full details)
Fixings: Depending on application (please contact Gramm Barrier Systems for full details)
Set Posts: Set posts in holes 300 mm diameter x 800** mm deep, filled not less than half the depth with concrete, as clause 620.
Maximum Posts Centres: 2032mm
Bottom of Fencing to Be: Maximum of 100 mm above final ground level.
Other Requirements: PPC Colour Green RAL 6005. A full range of RAL Colours are available from Gramm Barrier Systems including marine grade and metallics.

Foundation types

Gramms ArmaMeshGRIL mesh fencing system can be either set into concrete foundations or bolted down to individual concrete pads or a continuous concrete strip/pad.

Fixing methods

a) Galvanised steel or PPC posts with baseplates can be fixed to concrete surfaces using chemfix resin anchors or cast in cradles.
b) Steel posts can be set into augered or bucket dug concrete foundations.
