ArmaBarBESPOKE®

Description

Gramm Barrier Systems range of vertical railing ArmaBar® systems offer a wide variety of sizes and styles. Each panel is made up of the highest quality materials in a galvanised finish. The panels can also be finished in a range of RAL colours to suit your requirements. Gramm Barrier Systems ArmaBar® railings offer exceptional quality, and high security whilst maintaining good visibility.

Specification

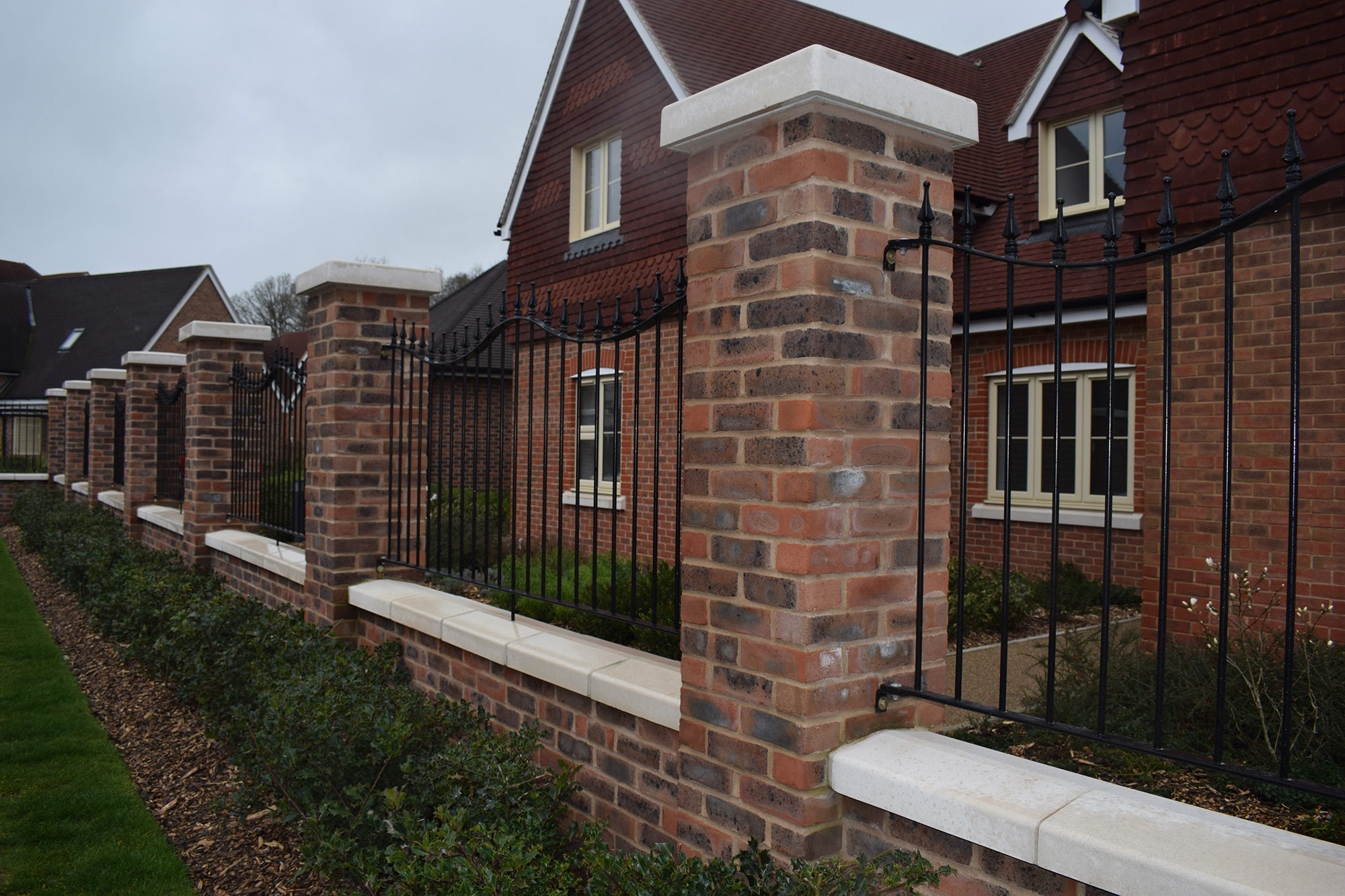

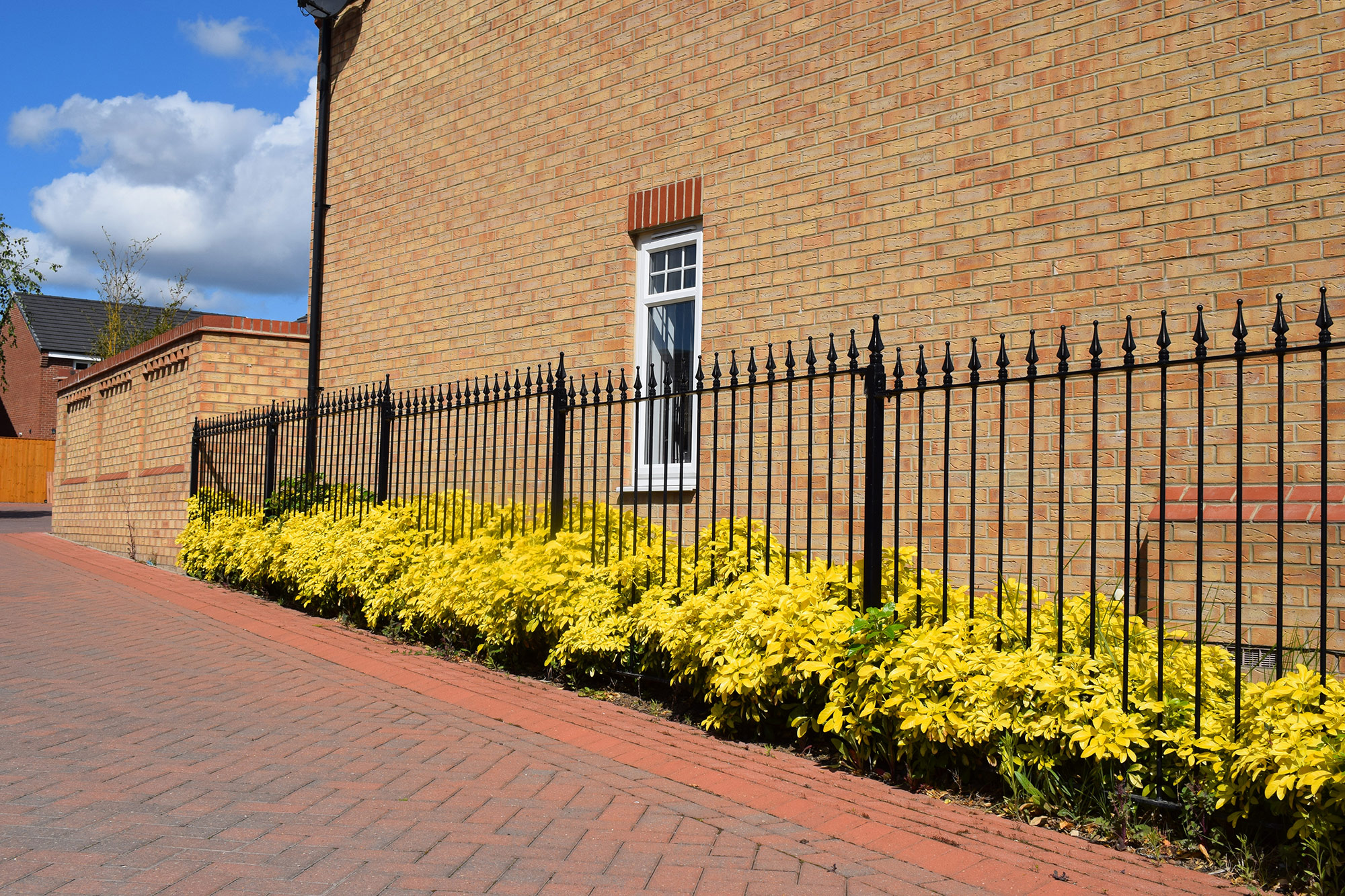

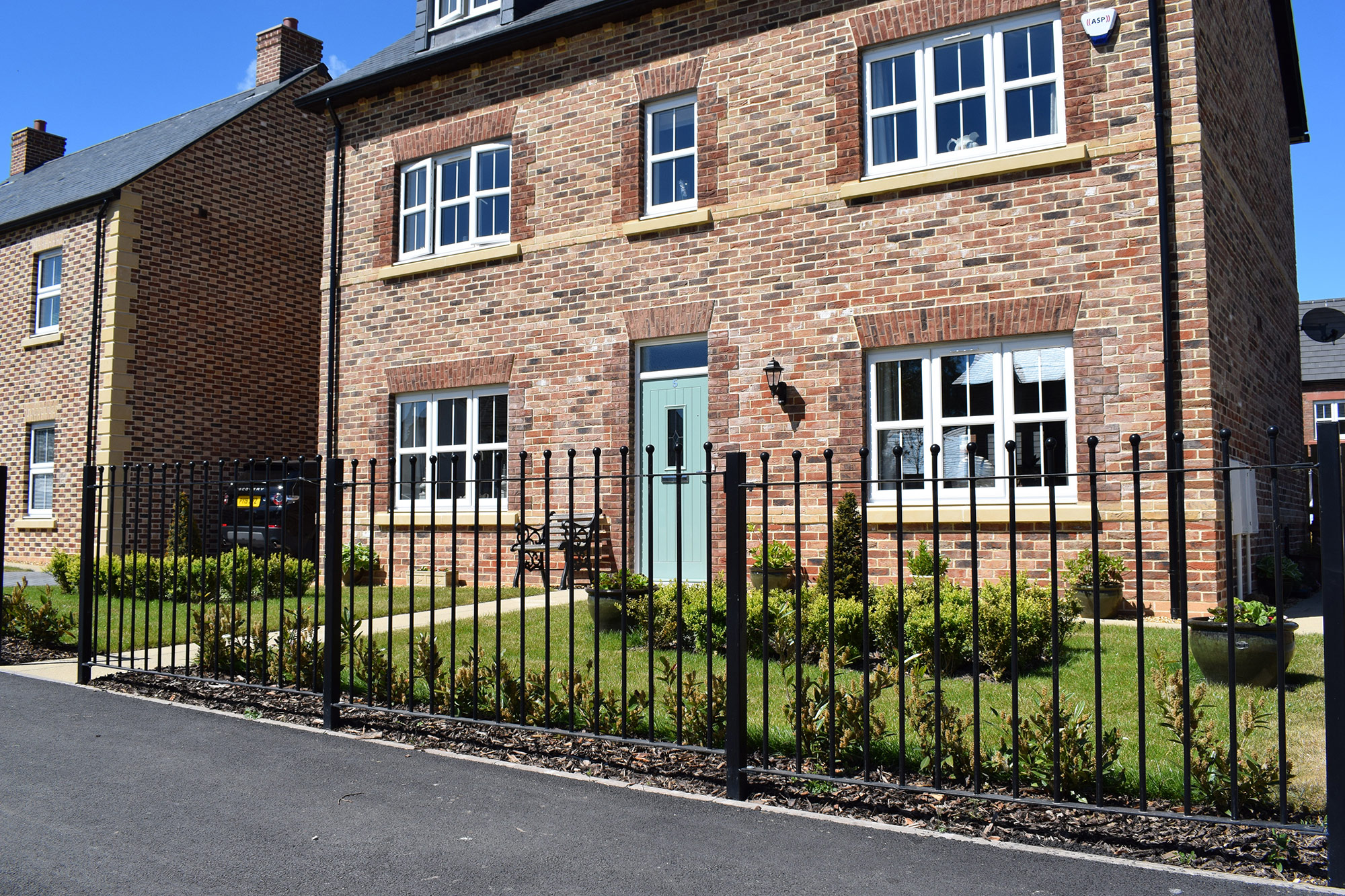

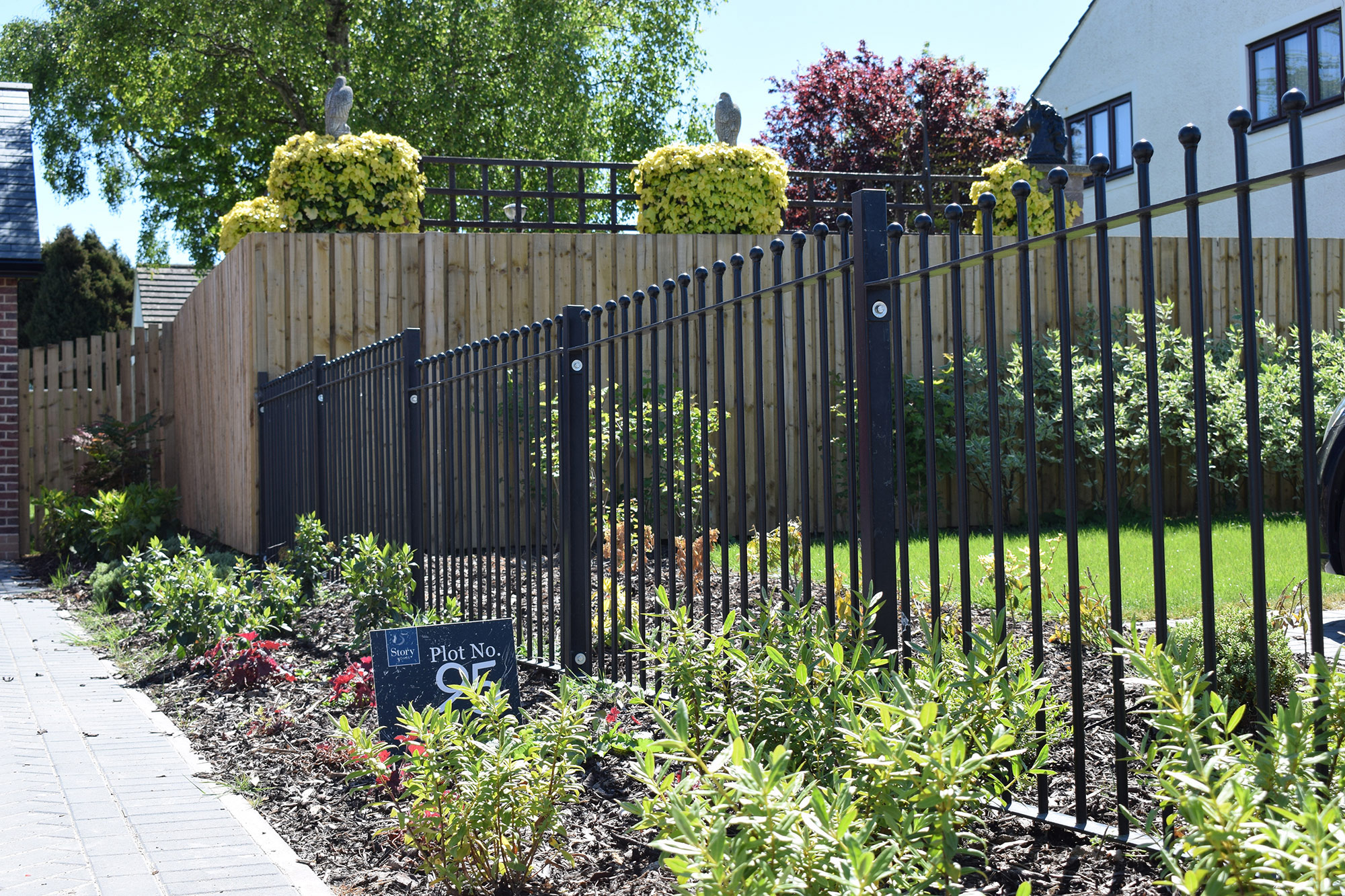

ArmaBarBESPOKE® looks great around public buildings, schools, retail premises, railways and industrial buildings. Featuring steel 12, 16, 20 & 22 Diameter of round or side of square vertical railings set at 112mm & 120mm centres. Security fixings are used fastening each panel to the galvanised 50 x 50mm, 70 x 70 or 80 x 80mm RHS steel posts, this railing system is built to last. (100 x 55mm RSJ post also available) ArmaBarBESPOKE® is a strong railing system. supplied with a range of forged-head finials.

All of the Gramm Barrier Systems ArmaBar® metal railing system are manufactured to meet the relevant British Standard rating.

ArmaBarBESPOKE® conforms to BS 1722 part 9 for steel metal railing fences, providing excellent quality assurances and is covered by our 15 year guarantee.

Technical

Height: 1000mm/1200mm/1500mm/1800mm/2400mm (Bespoke height available on request)
Nominal Height: 1.0m/1.2m/1.5m/1.8m/2.4m (Bespoke heights available on request)
Infill: 12mm Diameter solid vertical bar railings. (1.0 – 1.2m High)
16mm Diameter soild vertical bar railings. (1.2 – 1.5m High)
20mm Diameter soild vertical bar railings. (1.8m + High)
22mm Diameter solid vertical bar railings. (2.4m + High)
Posts: 50 x 50mm RHS steel posts (1.0m – 1.5m High)
70 x 70mm RHS steel posts (1.8m High)
80 x 80mm RHS steel posts (2.4m High)
100 x 55mm RSJ posts available for all heights.
Fixings: M8 x 95 Cup square bolt with permacone nut
Set Posts: Set posts in holes 300 mm diameter x 600** mm deep, filled not less than half the depth with concrete
Maximum Posts Centres: 2720mm
Bottom of Fencing to Be: approx. 50mm – 100mm above final ground level.
Other Requirements: PPC Colour Green RAL 6005. A full range of RAL Colours are available from Gramm Barrier Systems including marine grade and metallics.

Foundation types

Gramms ArmaBarBESPOKE® railing systems can be either set into concrete foundations or bolted down to individual concrete pads or a continuous concrete strip/pad.

Fixing methods

a) Galvanised steel or PPC posts with baseplates can be fixed to concrete surfaces using chemfix resin anchors or cast in cradles.
b) Steel posts can be set into augered or bucket dug concrete foundations.
