ArmaBarPALISADE®

Description

Gramm Barrier Systems ArmaPALISADE® systems offer a wide variety of heights and pale types. Each panel is made up of the highest quality materials in a galvanised finish. The panels can also be finished in a range of RAL colours to suit your requirements. Gramm Barrier Systems ArmaPALISADE® security fencing offers exceptional quality, and high security whilst maintaining good visibility.

Specification

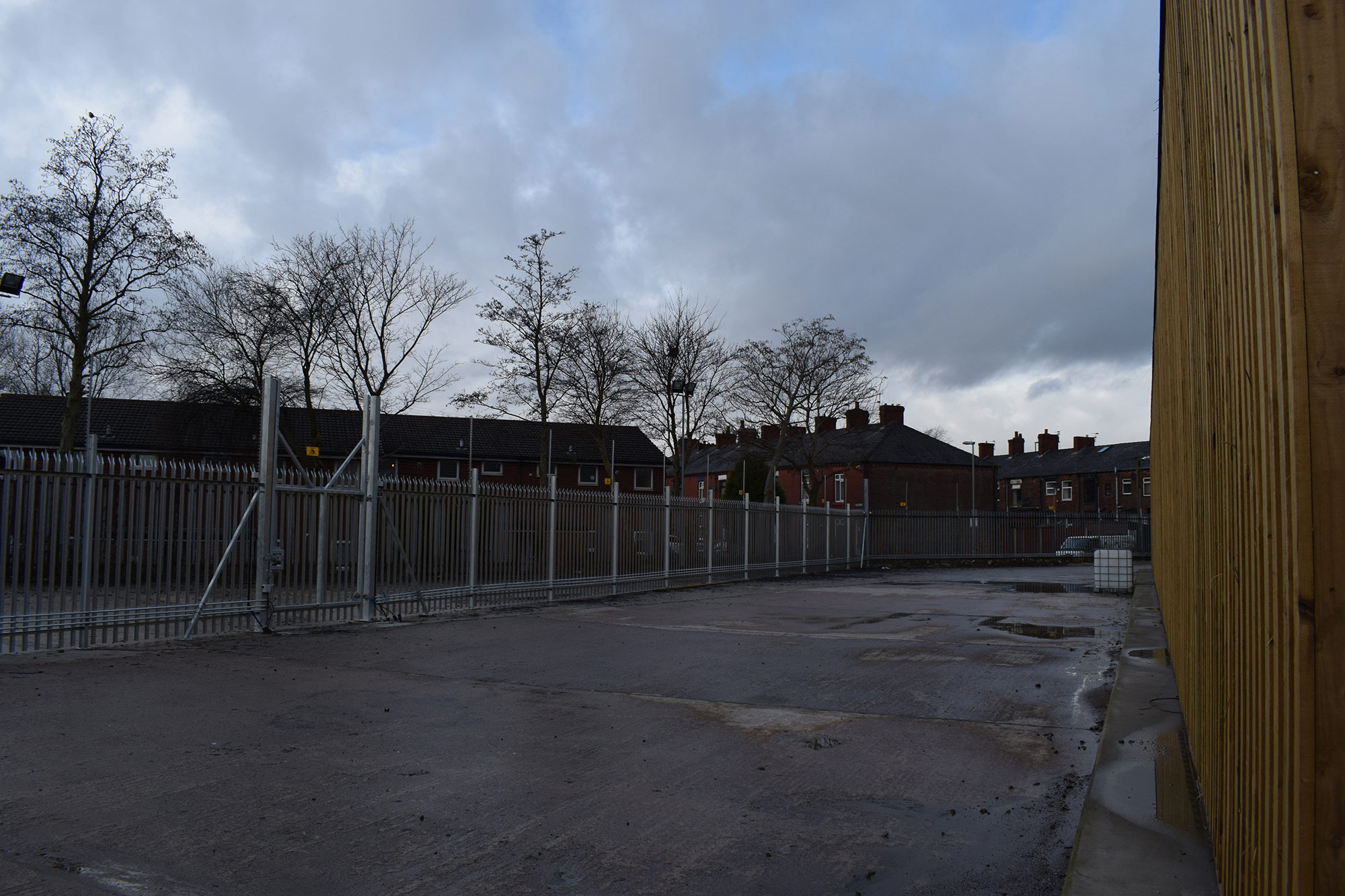

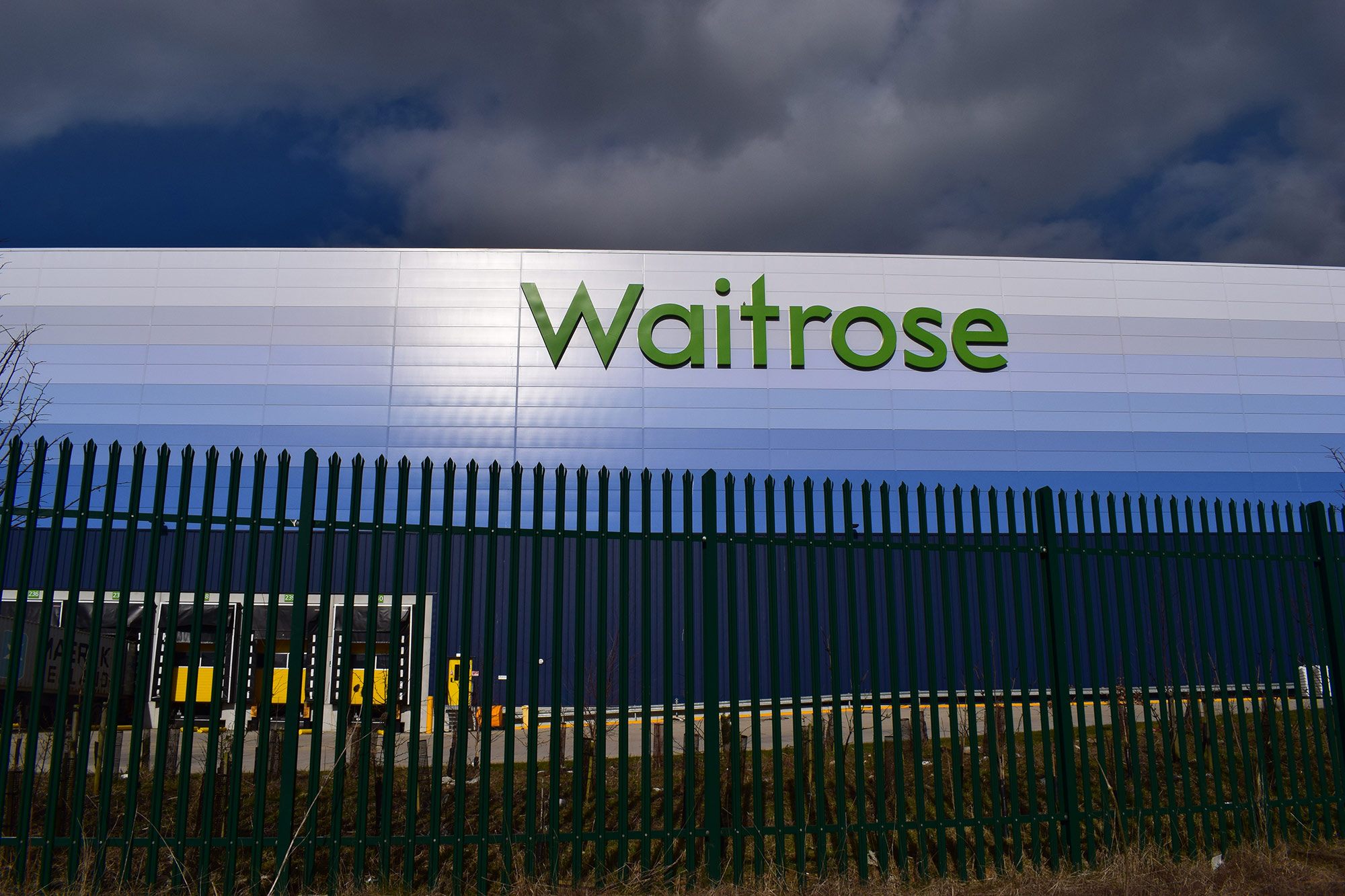

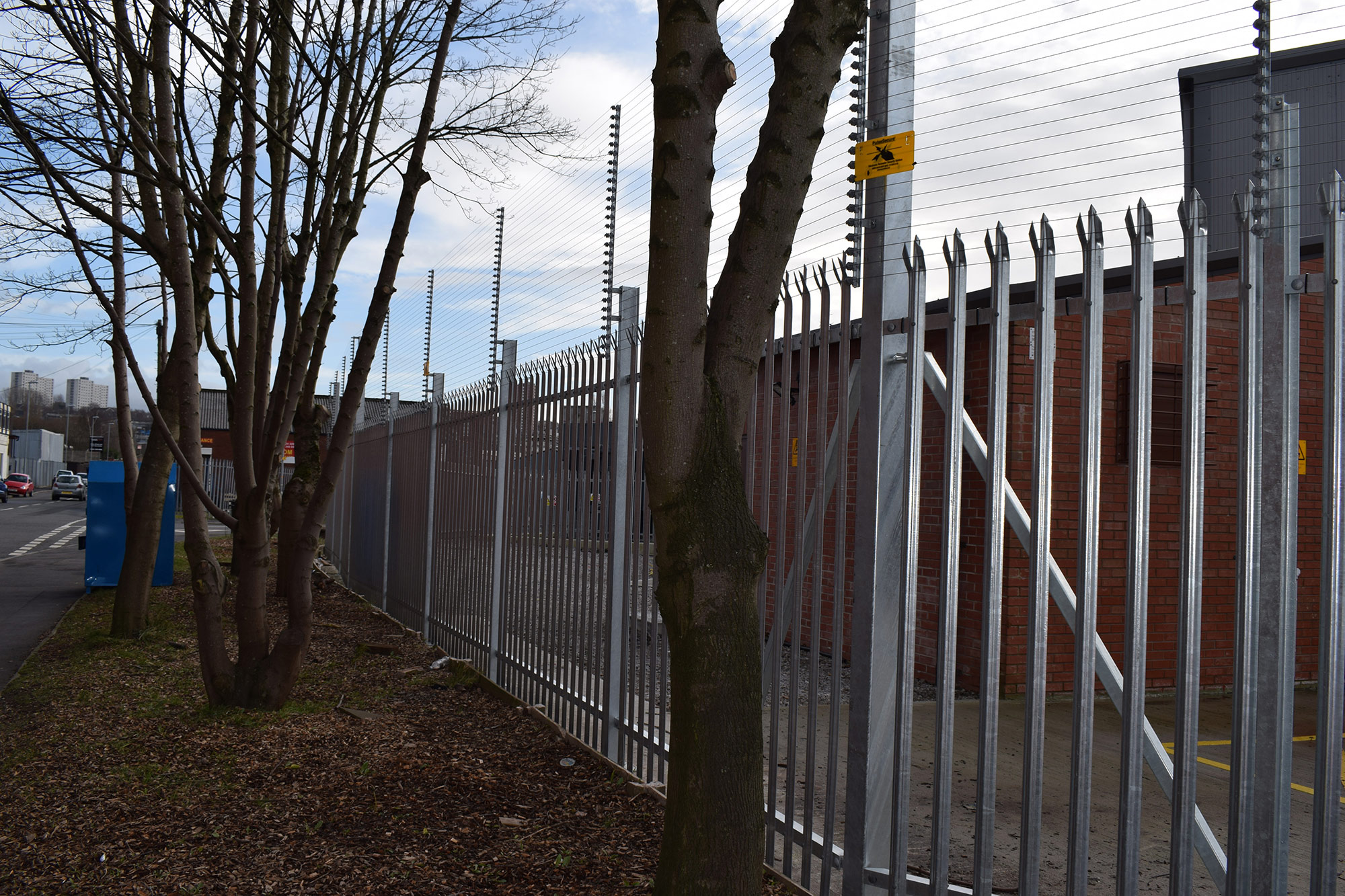

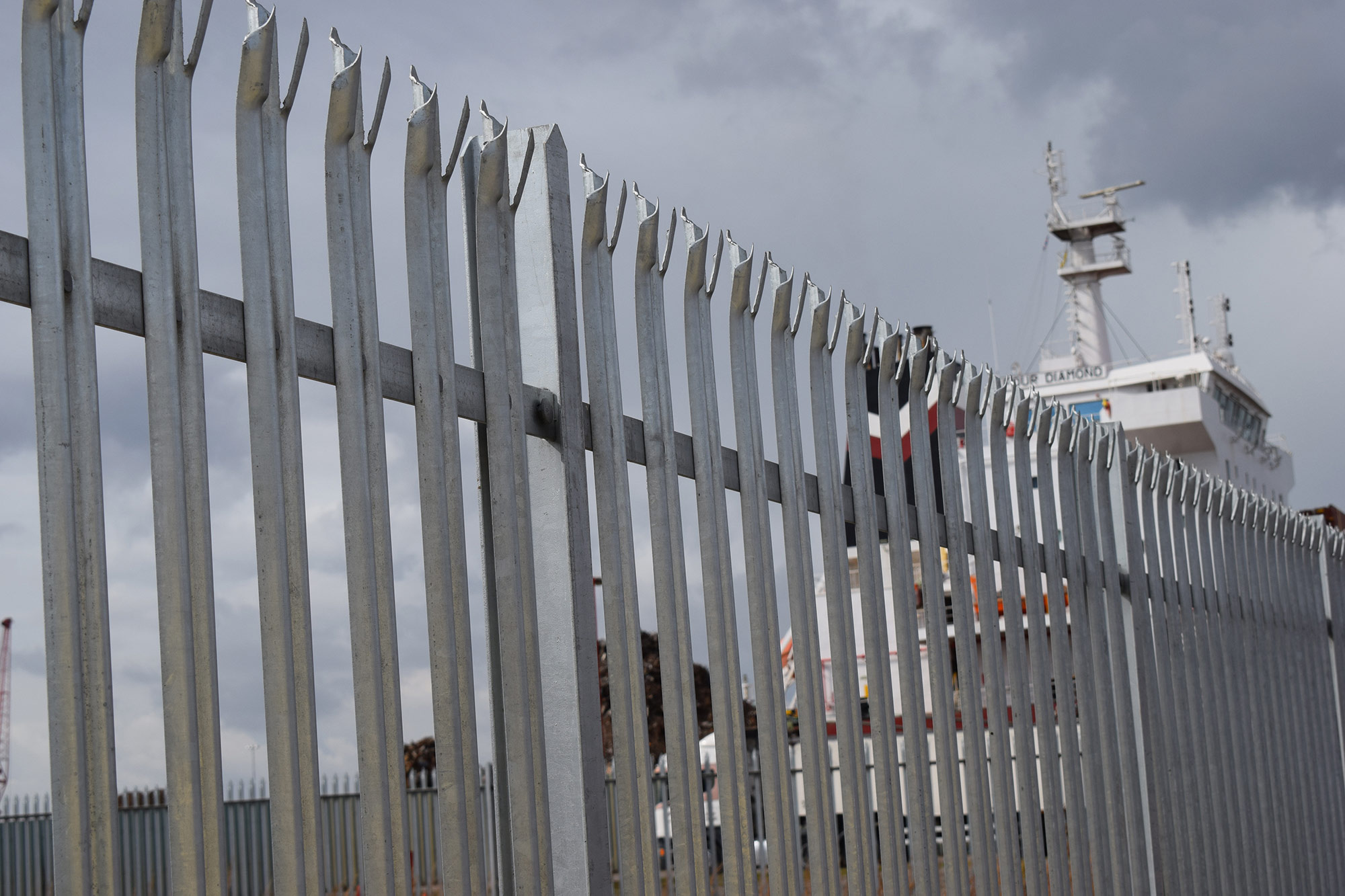

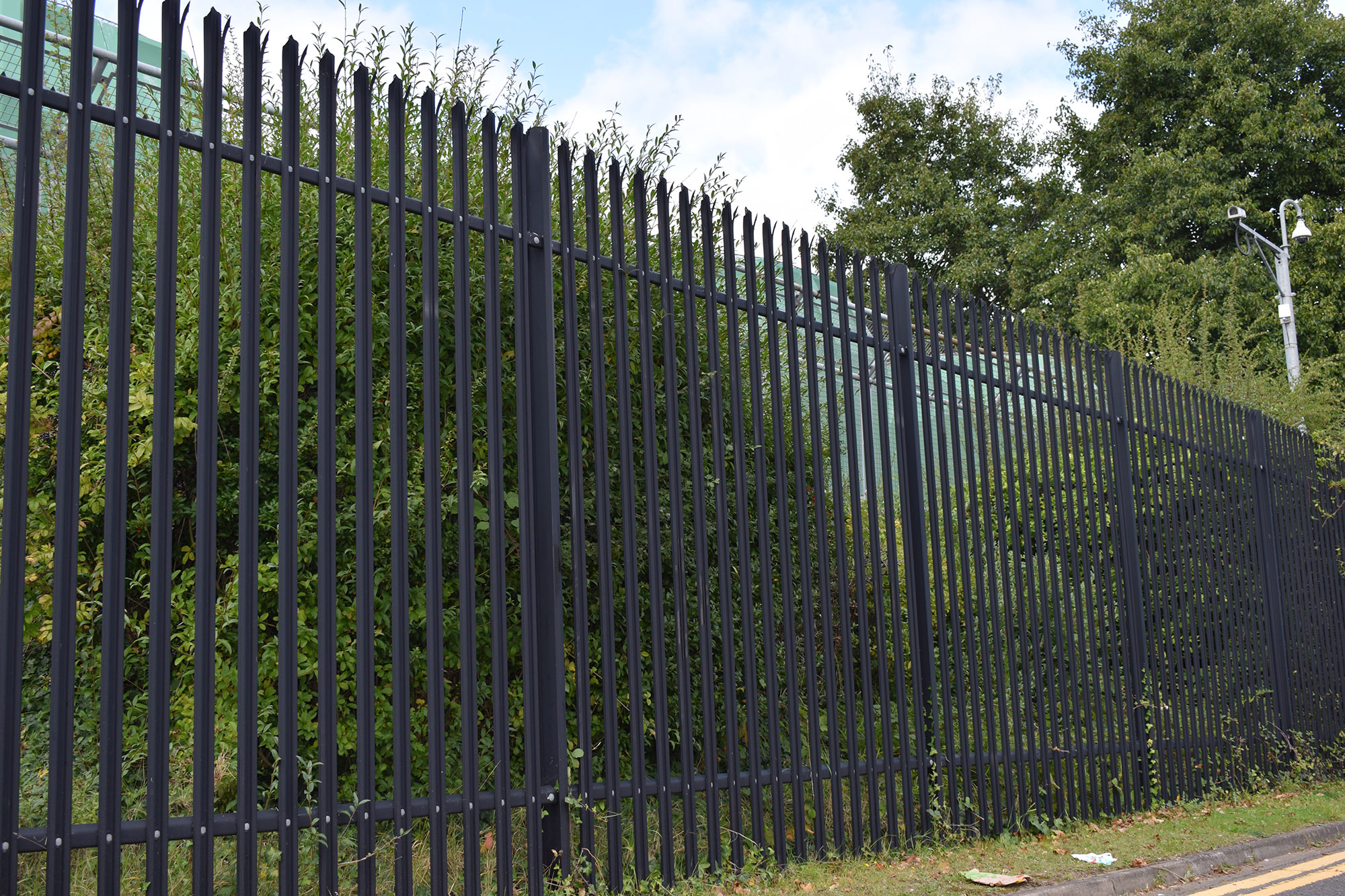

ArmaBarPALISADE® looks great around public buildings, schools, retail premises, railways and industrial buildings. Featuring steel RSJ posts with vertical pales set at 154mm centres. Security fixings are used to fasten each pale to the galvanised steel rails which vary in size depending on the level of security 45 x 45mm, 50 x 50mm 65 x5 0mm. Each bay can consist of two or 3 rails. ArmaPALISADE® is built to last using 2.0, 2.5, 3.0, 3.5mm thick pales which can be finished in a D or W shape.

All of the Gramm Barrier Systems ArmaPALISADE® metal fencing system are manufactured to meet the relevant British Standard rating.

ArmaPALISADE® conforms to BS 1722 part 12 for steel metal Palisade fences, providing excellent quality assurances and is covered by our 15 year guarantee.

Technical

Height: 1000mm/1200mm/1500mm/1800mm/2400mm/3000mm (Bespoke height available on request)
Nominal Height: 1.0m/1.2m/1.5m/1.8m/2.4m/3.0m (Bespoke heights available on request)
Infill: W or D Pale – 2.0, 2.5, 3.0, 3.5mm thick.
Posts: 100 x 55mm RSJ steel posts (Standard Security)
127 x 76mm RSJ steel posts (Standard/High Security)
Fixings: M8 x 95 T head bolt with permacone nut (Pales to rails)
M12 Cup Square bolt with permacone nut (Rails to post)
Set Posts: Set posts in holes 300 mm diameter x 600** mm deep, filled not less than half the depth with concrete
Maximum Posts Centres: 2750mm
Bottom of Fencing to Be: approx. 50mm – 100mm above final ground level.
Other Requirements: PPC Colour Green RAL 6005. A full range of RAL Colours are available from Gramm Barrier Systems including marine grade and metallics.

Foundation types

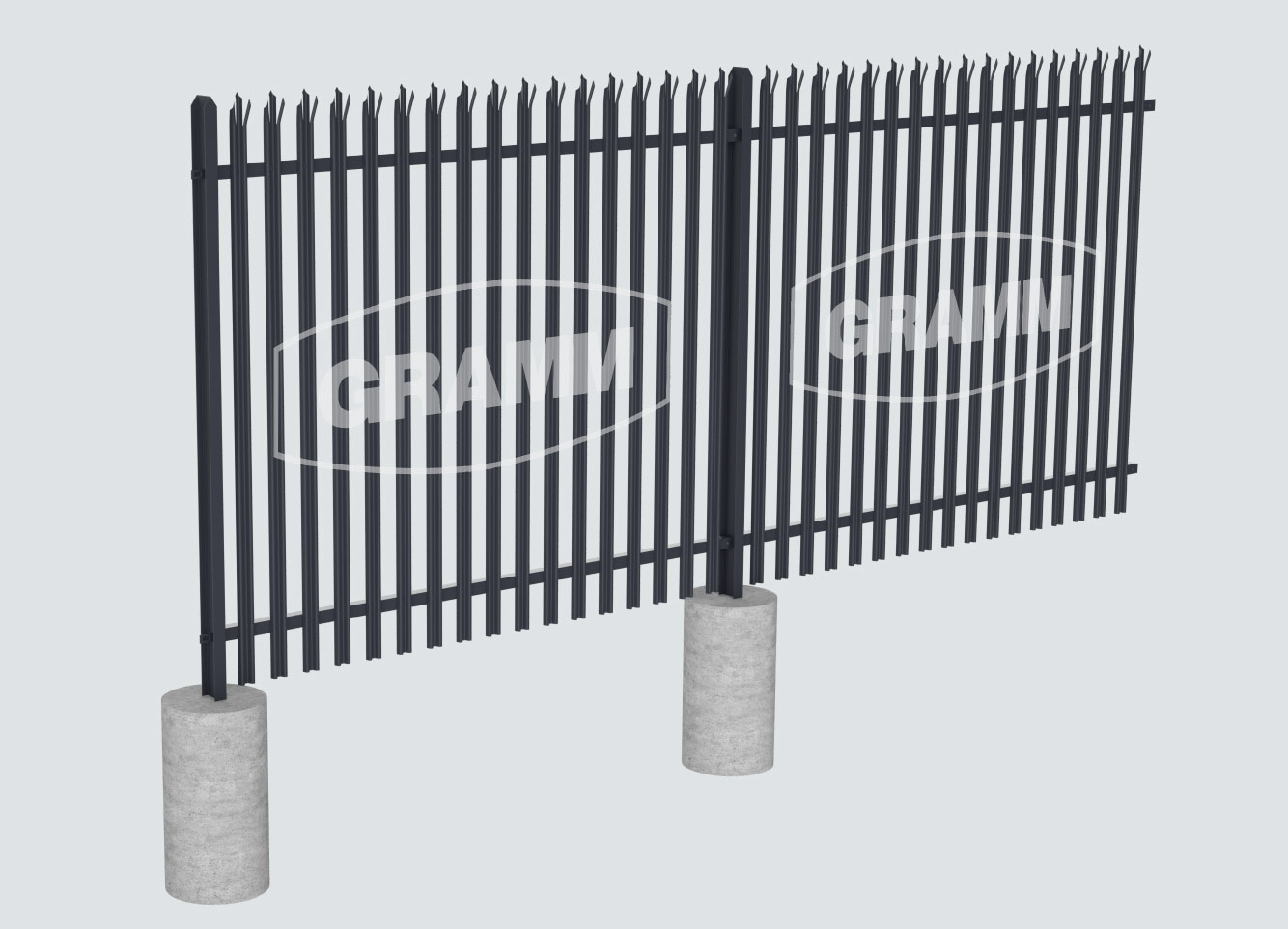

Gramms ArmaPALISADE® railing systems can be either set into concrete foundations or bolted down to individual concrete pads or a continuous concrete strip/pad.

Fixing methods

a) Galvanised steel or PPC posts with baseplates can be fixed to concrete surfaces using chemfix resin anchors or cast in cradles.
b) Steel posts can be set into augered or bucket dug concrete foundations.

Downloads

ArmaPALISADE
