ArmaMeshSPORT

Description

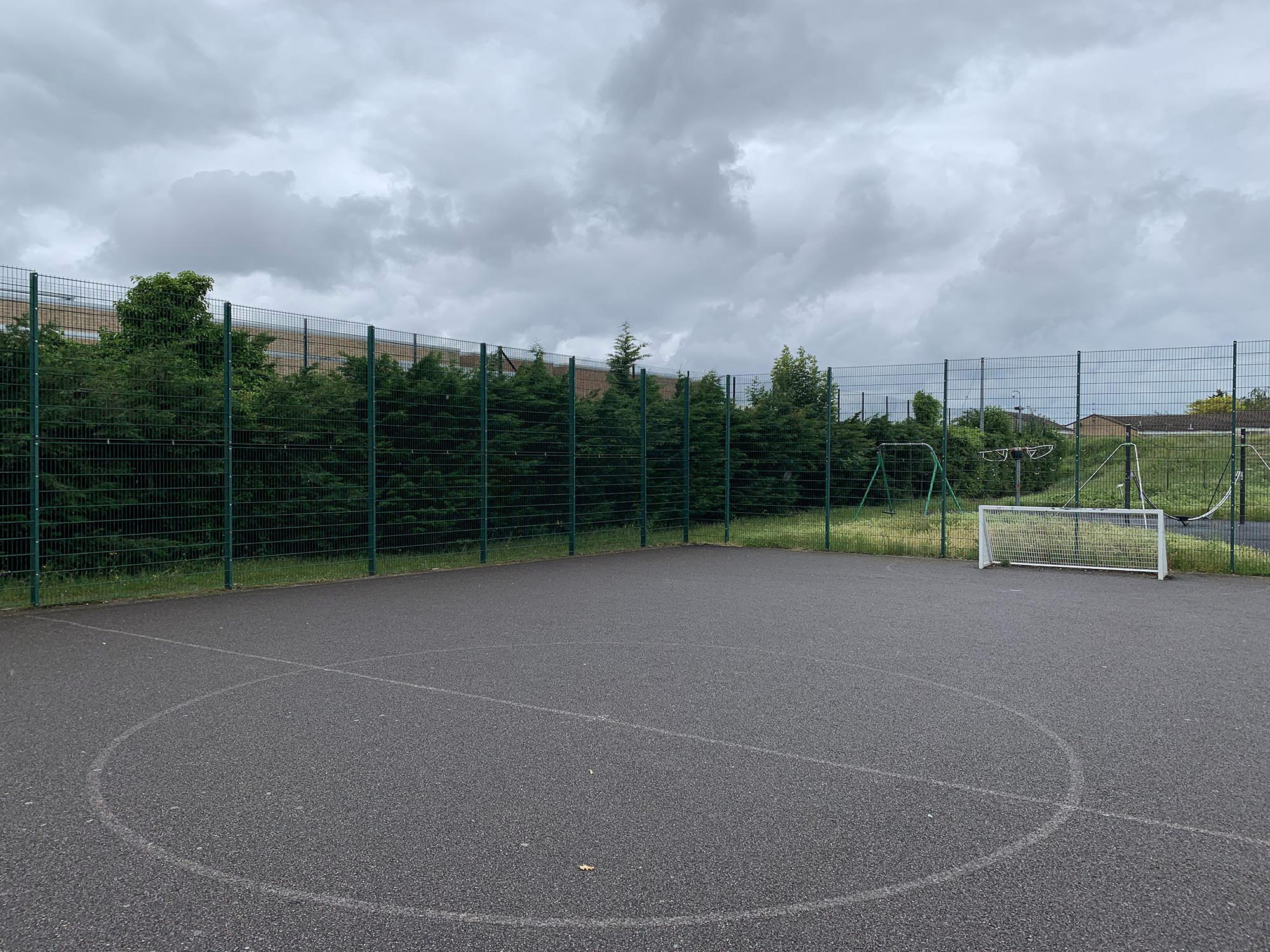

Durability is a key requirement of any sporting perimeter and features as standard across our ArmaMeshSPORT double wire panel MUGA fencing system. Making it the perfect choice when you’re looking for strong-yet-practical fencing of up to 6060mm high for your school, football ground or MUGA (multi-purpose game area).

Specification

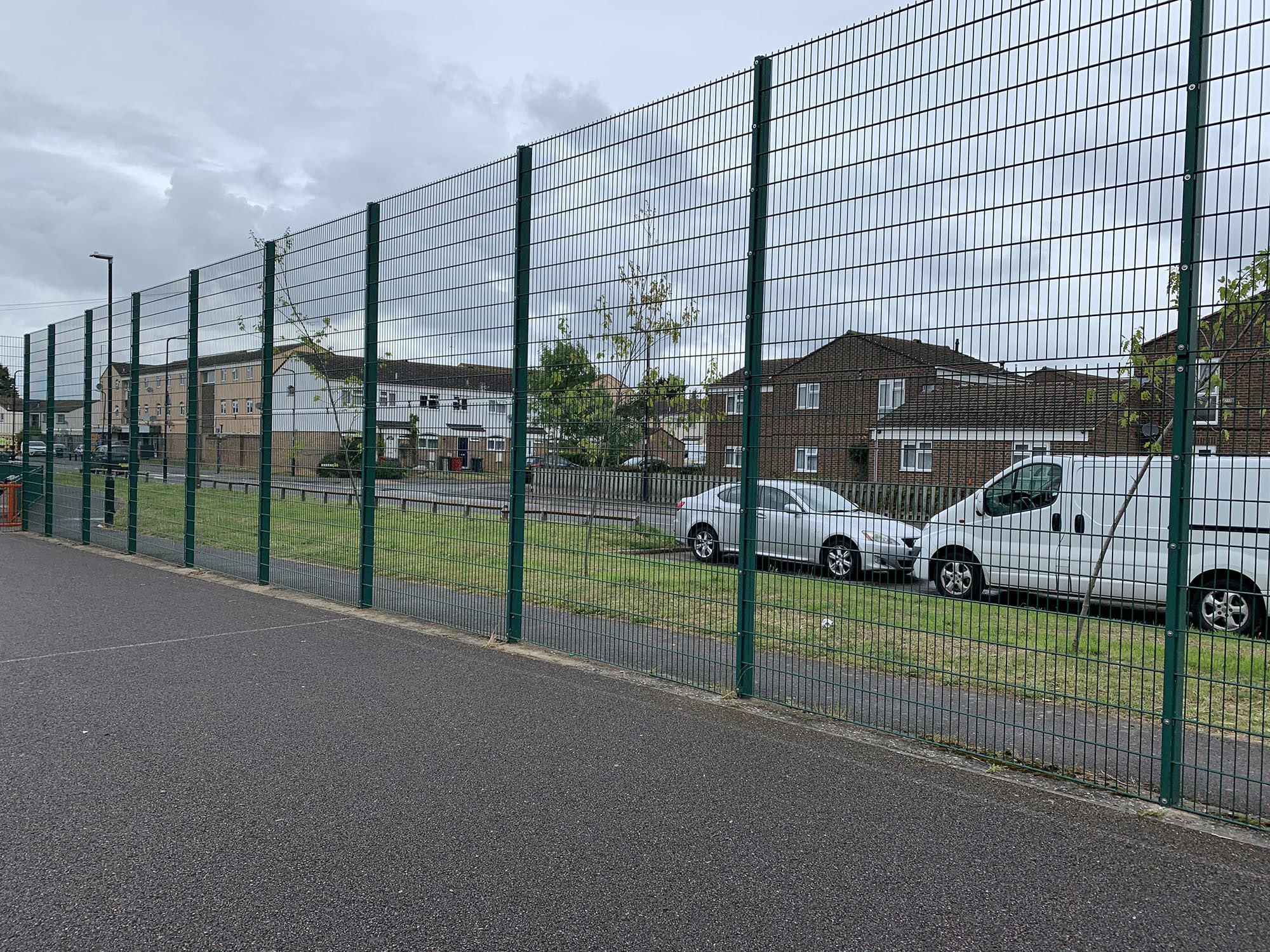

Each steel panel features twin 8mm wires welded either side of 6mm vertical wires, making them extremely difficult to cut through or damage. The twin wires are highly rigid too, adding to the strength of the fence even when under stress from people, balls or sports equipment making it the perfect MUGA Fencing System.

Available in a wide range of RAL colour which can match up with your organisation, club or team colours. All of this comes with the peace of mind that ArmaMeshSPORT conforms to the British Safety Standards for open mesh steel panel fences.

Technical

Height: 630mm/830mm/1030mm/1230mm/1430mm/1630mm/1830mm/2030mm/
2430mm/2660mm/2860mm/3030mm/3460mm/3860mm/4060mm/4460mm/
4860mm/5060mm/5460mm/5660mm/6060mm
Nominal Height: 0.6m/0.8m/1.0m/1.2m/1.4m/1.6m/1.8m/2.0m/2.4m/2.7m/2.8m/3.0m/
3.4m/3.8m/4.0m/4.4m/4.8m/5.0m/5.4m/5.6m/6.0m
Mesh & Wire: 200 x 50mm mesh; 6mm verticals and twin 8mm horizontal nominal wires, galvanised and polyester powder-coated to 60 microns
Posts: 60 x 40 mm RHS, galvanised after manufacture and polyester powder-coated with 40 x 5mm full length clamp bar galvanised and polyester powder-coated to match fencing. (630mm – 2860mm Panels ONLY)

80 x 40 mm RHS, galvanised after manufacture and polyester powder-coated with 40 x 5mm full length clamp bar galvanised and polyester powder-coated to match fencing. (3030mm – 4060mm Panels ONLY)

100 x 50 mm RHS, galvanised after manufacture and polyester powder-coated with 40 x 5mm full length clamp bar galvanised and polyester powder-coated to match fencing. (4460mm – 5460mm Panels ONLY)

120 x 60 mm RHS, galvanised after manufacture and polyester powder-coated with 40 x 5mm full length clamp bar galvanised and polyester powder-coated to match fencing. (5560mm – 6060mm Panels ONLY)

Fixings: M8 x 40 mm stainless steel pin hex dome-head security screws
Set Posts: Set posts in holes 300 mm diameter x 800** mm deep, filled not less than half the depth with concrete, as clause 620
Maximum Posts Centres: 2520mm
Bottom of Fencing to Be: approx. 50 mm above final ground level.
Other Requirements: PPC Colour Green RAL 6005. A full range of RAL Colours are available from Gramm Barrier Systems including marine grade and metallics.

Foundation types

Gramms ArmaMeshSPORT mesh fencing system can be either set into concrete foundations or bolted down to individual concrete pads or a continuous concrete strip/pad.

Fixing methods

a) Galvanised steel or PPC posts with baseplates can be fixed to concrete surfaces using chemfix resin anchors or cast in cradles.
b) Steel posts can be set into augered or bucket dug concrete foundations.
