ArmaGATE®

Description

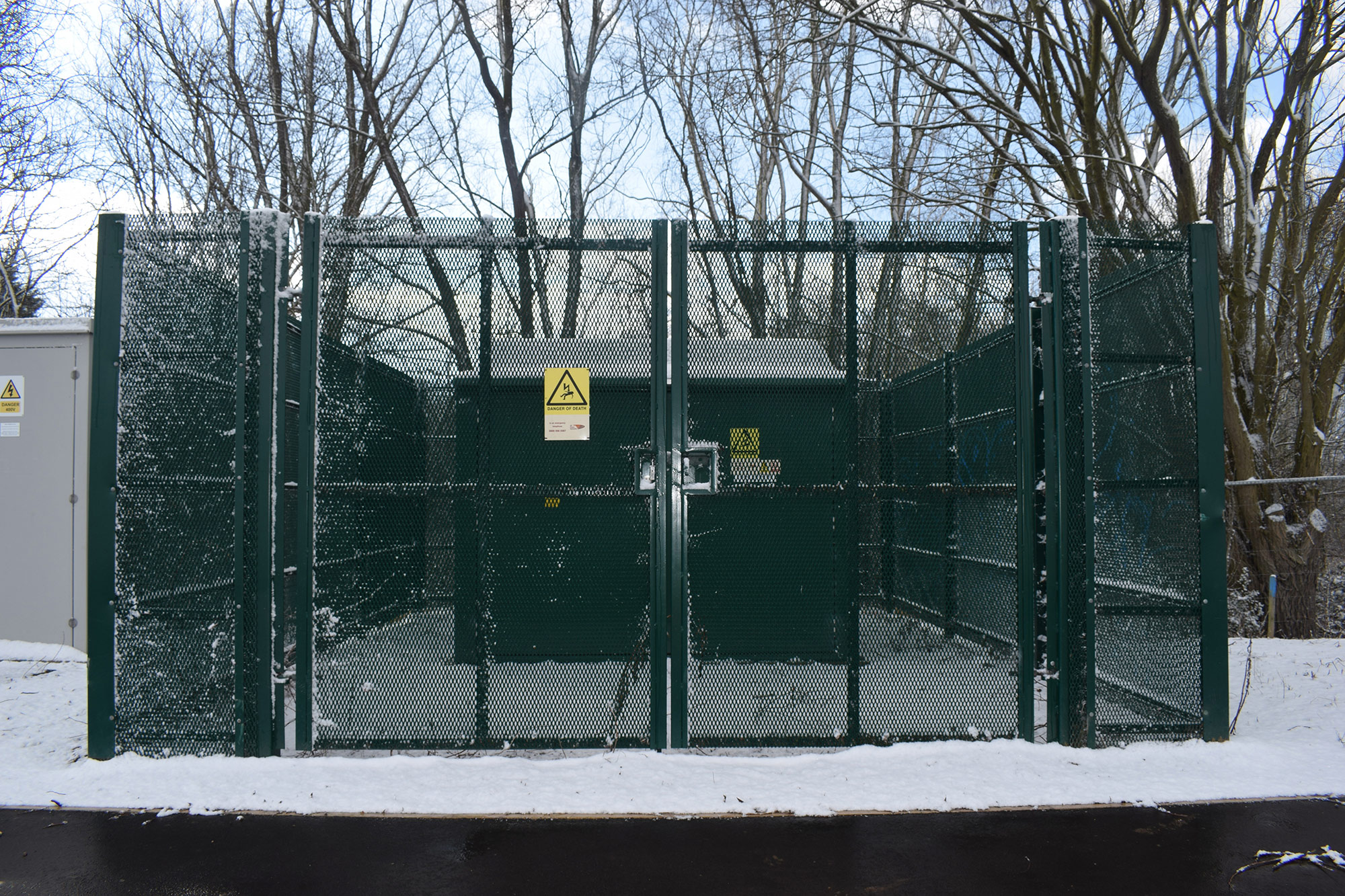

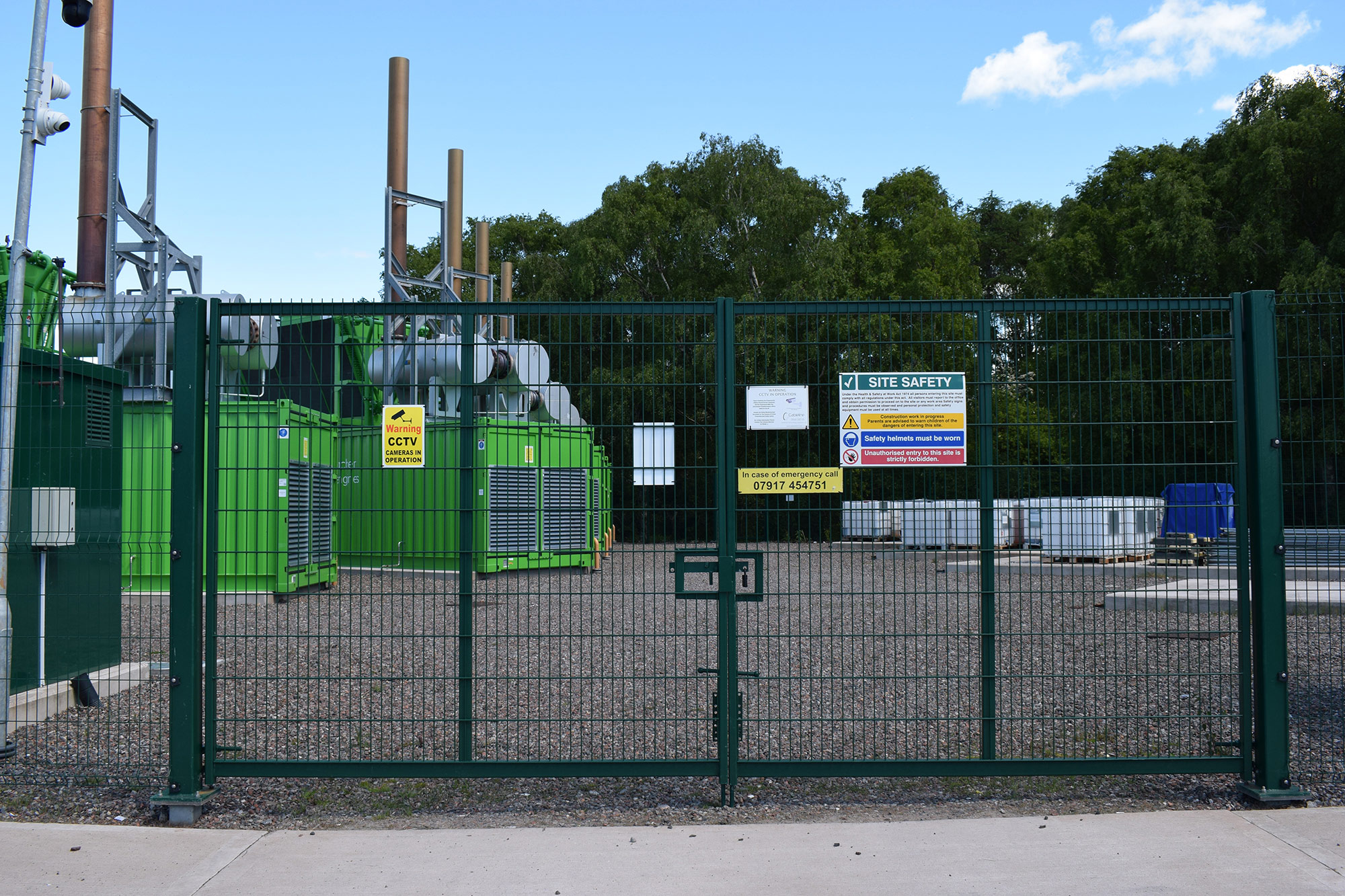

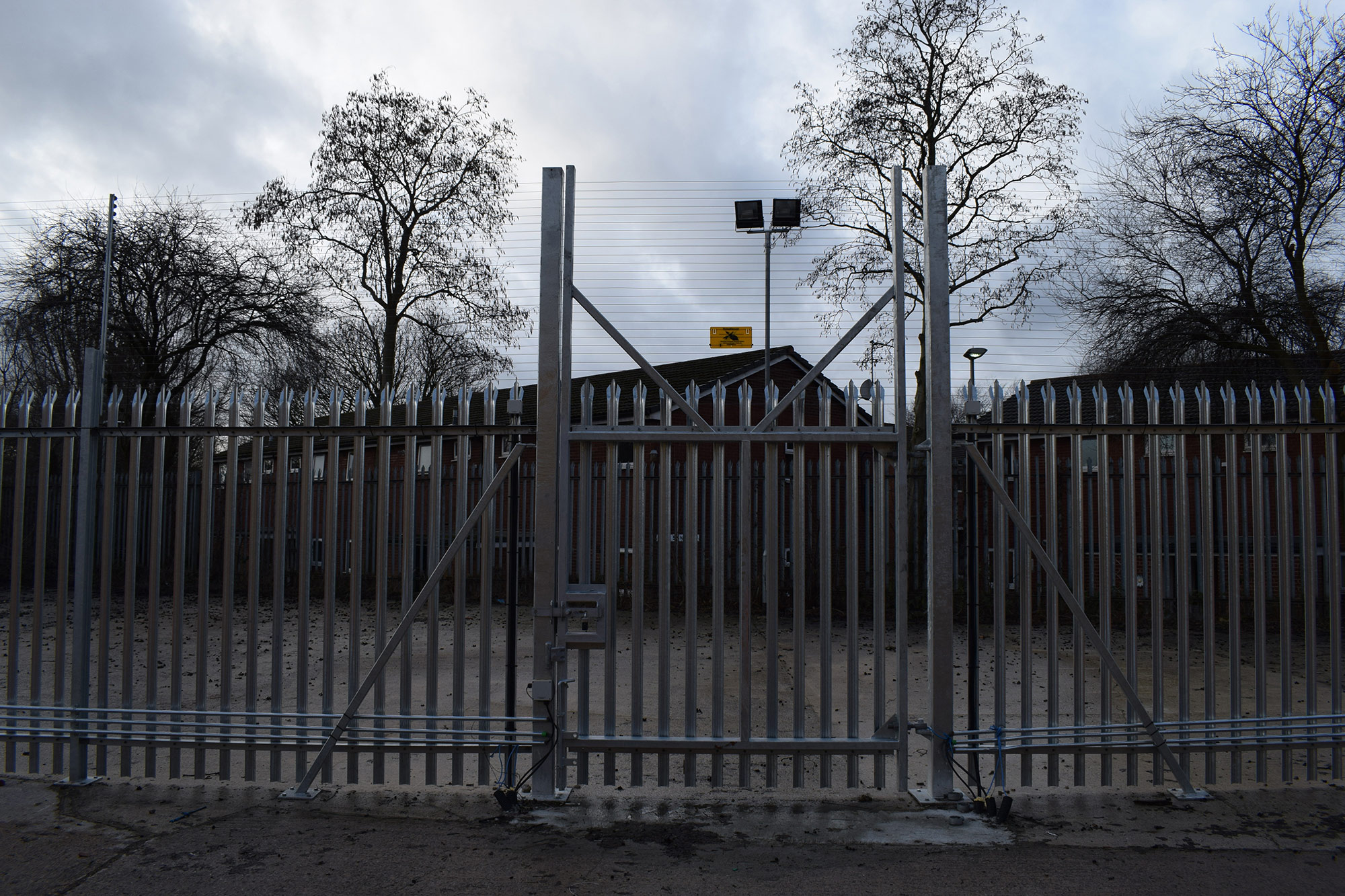

Gramm Barrier Systems ArmaGATE® systems offer a wide variety of heights and widths clad with various materials. Each Gate is made up of the highest quality materials which are then clad with our ArmaMesh®, ArmaBar®, ArmaPALISADE®, Timber or SoundBlok® Noise Barrier Systems.

Our ArmaGATE® system integrates seamlessly with the complete range of Gramm Barrier Systems perimeter security systems and harmonises with all styles of existing or new boundary installations, with an extensive choice of widths and heights and an almost endless array of infills.

Specification

Our ArmaGATE® system integrates seamlessly with the complete range of Gramm Barrier Systems perimeter security systems and harmonises with all styles of existing or new boundary installations, with an extensive choice of widths and heights and an almost endless array of infills.

The ArmaGATE® system is clad with various Gramm fencing and noise barrier products that are fixed to a steel SHS surround using a solid clamp bar and secure fixings, making them extremely hard-wearing and giving them a real heavy-duty feel.

They’re supplied with steel drop bolt sockets to be set in concrete, and all gates feature adjustable anti-lift-off hinges, making them incredibly difficult to vandalise.

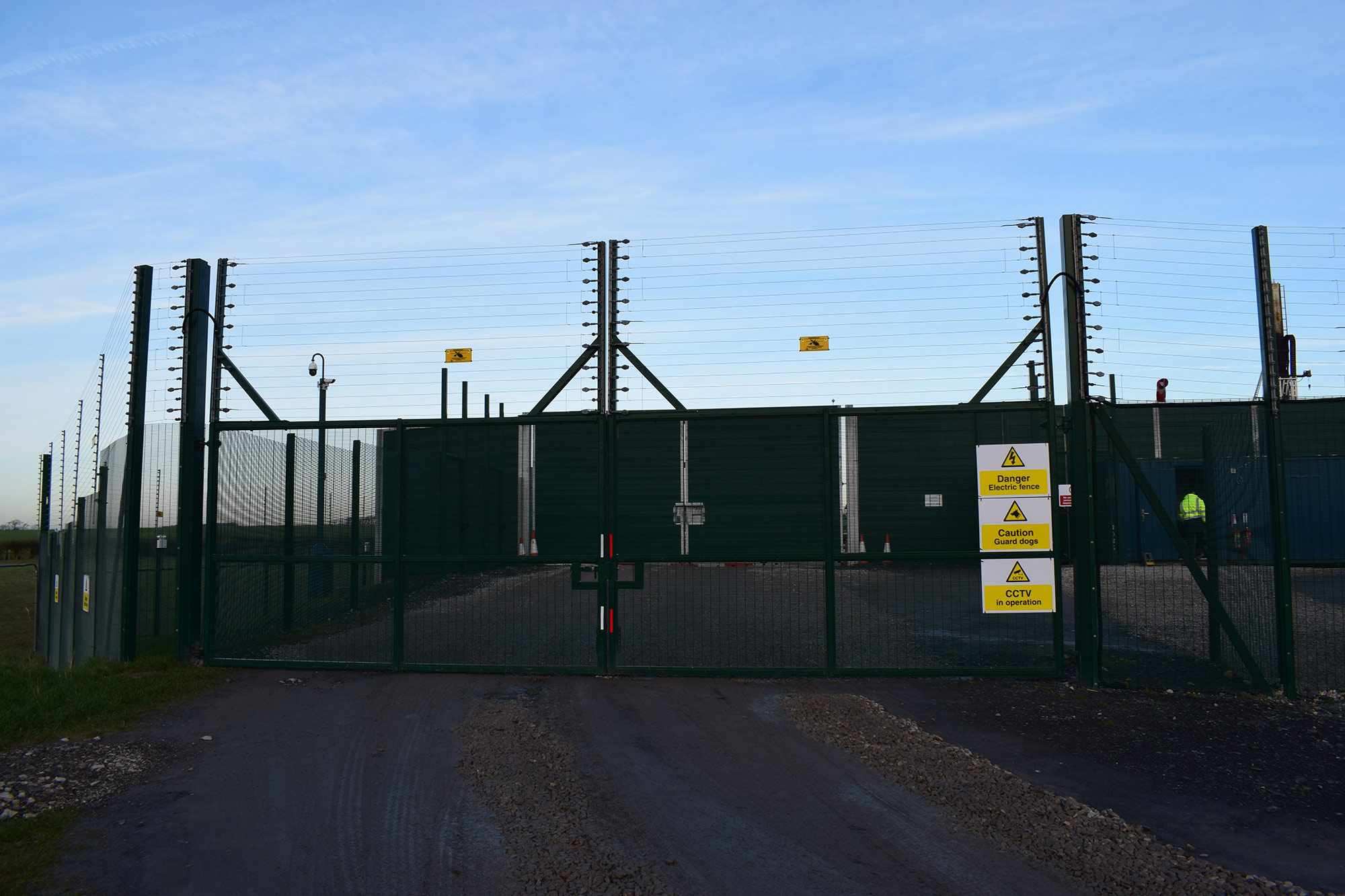

ArmaGATES® are fitted with a slide latch as standard, although you can enhance security with your choice of options from our Locking and Closing range. You can also top gates with any of the deterrents from our Active Anti-Intruder range.

All of Gramm Barriers ArmaGATE® systems are manufactured to meet the relevant British Standard rating, providing excellent quality assurances and is covered by our 15 year guarantee.

Technical

Height: 1000mm/1200mm/1500mm/1800mm/2400mm/3000mm (Bespoke height available on request)
Widths: 1.0m/1.2m/1.5m/1.8m/2.4m/3.0m/3.5m/4.0m/5.0m/6m (Bespoke heights available on request)
Infill: ArmaBAR®, ArmaMESH®, SoundBlok® Noise Barriers, Timber + others.
Posts: 100 x 100mm RHS steel posts (1.0m – 1.8m High)
150 x 150mm RHS steel posts (1.8m High+)
200 x 200mm RHS steel posts (3.0m High+)
(Bespoke posts available on request)
Fixings: M8 & M12 Cup square bolt with permacone nut.
Set Posts: Set posts in holes 600 mm diameter x 1000mm mm deep, filled not less than 2/3 the depth with concrete
Bottom of Fencing to Be: approx. 50mm – 100mm above final ground level.
Other Requirements: PPC Colour Green RAL 6005. A full range of RAL Colours are available from Gramm Barrier Systems including marine grade and metallics.

Foundation types

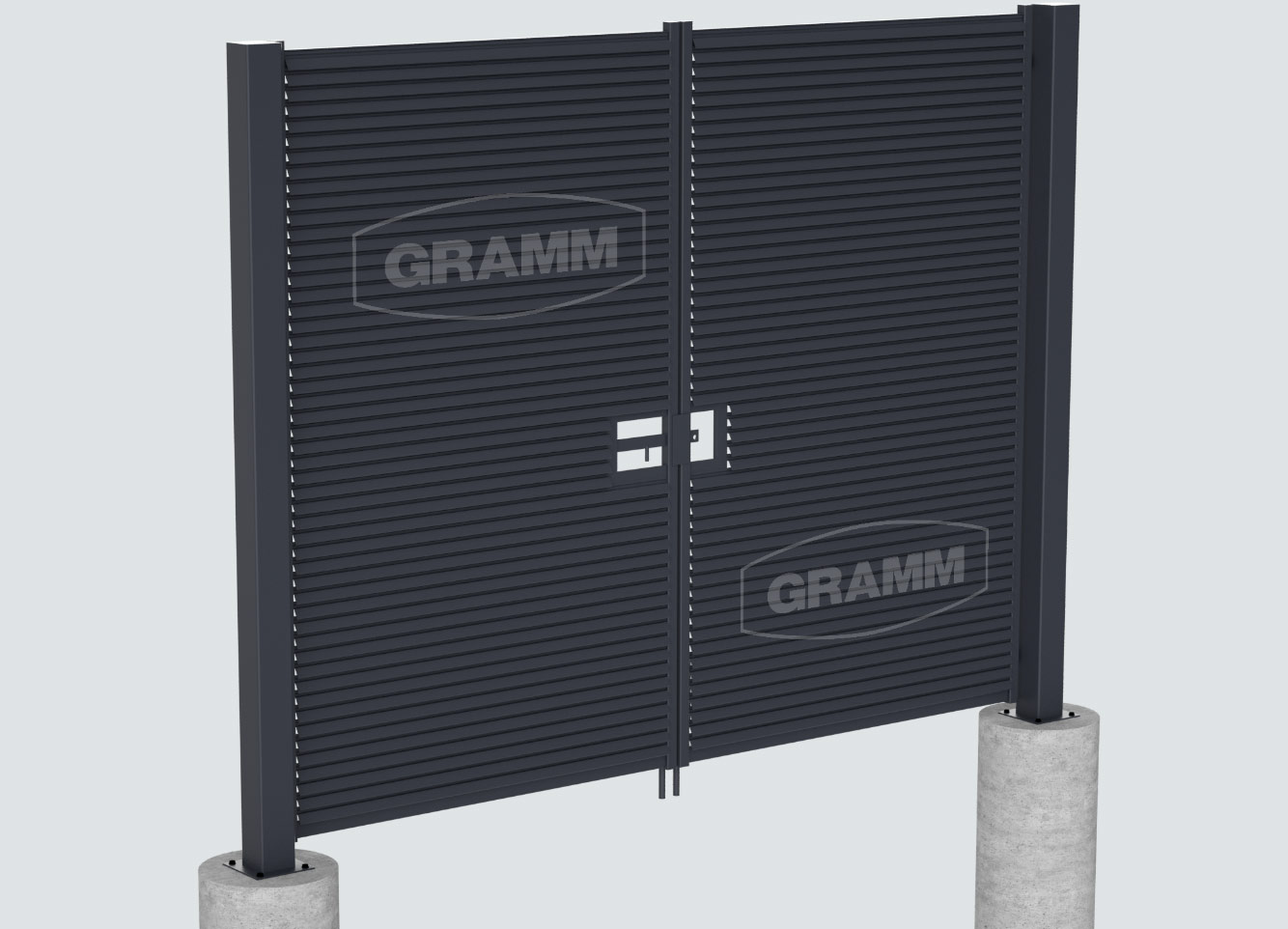

Gramms ArmaGATE® fencing system can be either set into concrete foundations or bolted down to individual concrete pads or a continuous concrete strip/pad.

Fixing methods

a) Galvanised steel or PPC posts with baseplates can be fixed to concrete surfaces using chemfix resin anchors or cast in cradles.
b) Steel posts can be set into augered or bucket dug concrete foundations.
